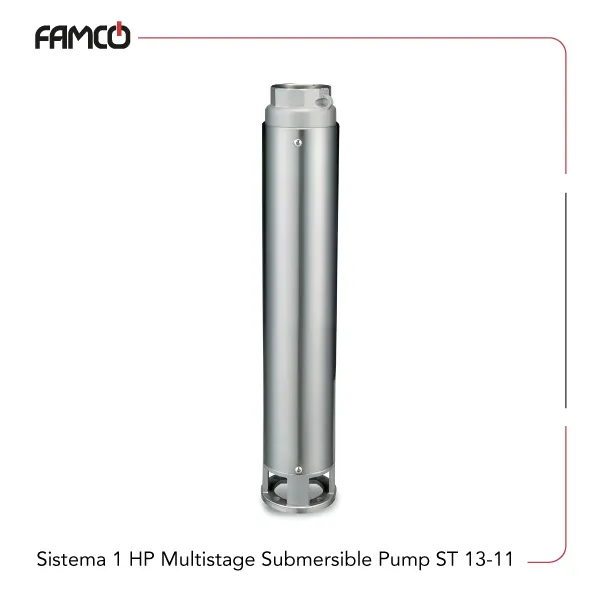

Sistema 1 HP Multistage Submersible Pump ST 13-11 Specifications
This pump features a power output of 0.75 kW, equivalent to 1 HP, making it suitable for various small to medium applications. It can handle flow rates from 0 to 4.2 cubic meters per hour, or up to 70 liters per minute, providing flexibility for different operational needs. The head range varies between 26 and 72 meters, allowing it to lift liquids efficiently across different heights. The pump’s body is made of durable cast iron, ensuring longevity and resistance to wear. This Sistema submersible pump is designed to operate with a maximum liquid temperature of 35°C, making it ideal for water and similar fluids. The insulation class is B, which offers good thermal protection, while the protection degree IP68 guarantees complete protection against dust and water ingress, suitable for harsh environments. The pump weighs only 3.4 kg, making it lightweight and easy to install or move. The connection size is DNM 1 1/4 inch, compatible with standard piping systems, ensuring easy integration into existing setups.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Flow rate (m3/h) | 0-4.2 |
| Flow rate (l/min) | 0-70 |
| Head range (m) | 26-72 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Liquid temperature (°C) | 35 |
| Weight (kg) | 3.4 |
| DNM | 1 1/4″ |
Sistema 1 HP Multistage Submersible Pump ST 13-11 Performance Data
| Q (m3/h) | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 4.2 |
| Q (l/min) | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 50 |
| H (m) | 72 | 68 | 66 | 64 | 61 | 58 | 54 | 49 | 38 | 26 |
Sistema 1 HP Multistage Submersible Pump ST 13-11 Applications
- Water supply systems
- Irrigation and agriculture
- Industrial fluid transfer
- Flood control and drainage
Sistema 1 HP Multistage Submersible Pump ST 13-11 Benefits
- High durability with cast iron body
- Excellent protection against dust and water
- Flexible flow and head options
- Lightweight and easy to install
Sistema 1 HP Multistage Submersible Pump ST 13-11 Price List
| No. | Name | Price |
| 1 | Sistema 1 HP Multistage Submersible Pump ST 13-11 Price | Contact us |
