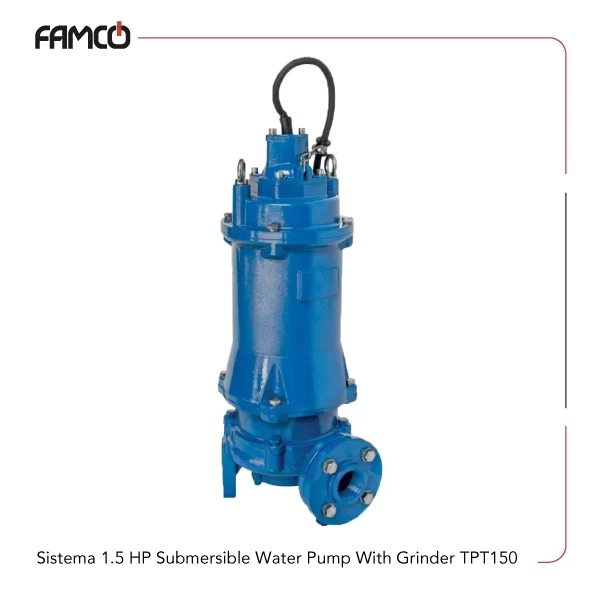

Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Specifications
Sistema 1.5 HP submersible sewage pump with grinder TPT150 operates with a power of 1.1 kW (1.5 HP) and draws a current of 6.5 amperes. It can handle a maximum flow rate of 12 cubic meters per hour, which is equivalent to 200 liters per minute. This Sistema submersible sewage pump delivers water up to a height of 17 meters, making it suitable for various applications requiring significant lifting capacity. It is designed to work with liquids at temperatures up to 35°C for residential use, complying with EN 60335-2-41 standards, and can handle liquids up to 40°C for other industrial or commercial purposes. The maximum immersion depth is 10 meters, allowing flexible installation options, and it requires a minimum suction level of 125 mm for proper operation. The pump features an insulation class F, providing good thermal resistance, and is protected with an IP 68 rating, ensuring complete protection against dust and water ingress. The motor body and impeller are made of durable cast iron, which offers strength and longevity. The shaft with rotor is crafted from stainless steel AISI 304, providing corrosion resistance and smooth operation in various environments.
| Specification | Value |
| Phase | Single-phase |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Current (A) | 6.5 |
| Maximum Flow rate (m3/h) | 12 |
| Maximum Flow rate (l/min) | 200 |
| Maximum delivery head (m) | 17 |
| Liquid temperature up to | 35°C (for home use according to EN 60335-2-41) |
| Temperature max. liquid | 40°C (for other uses) |
| Maximum immersion depth | 10 meters |
| Min. suction level | 125 mm |
| Insulation Class | F |
| Protection | IP 68 |
| Motor body | Cast Iron |
| Impeller | Cast Iron |
| Shaft with rotor | Stainless Steel AISI 304 |

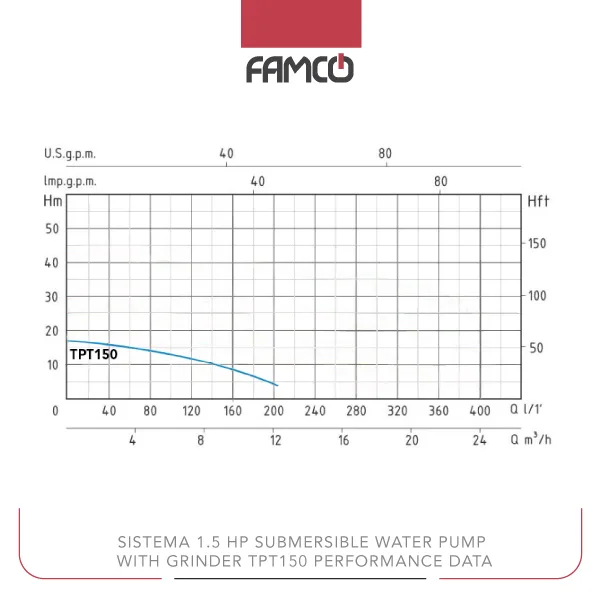

Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Performance Data
| m3/h | 0 | 3 | 6 | 9 | 12 |
| l/min | 0 | 50 | 100 | 150 | 200 |
| H (m) | 17 | 15 | 12 | 9 | 5 |
Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Dimensions
| A | B | C | H | H1 | DNM | Weight |
| 212 | 165 | 130 | 495 | 85 | 1 ½ | 32 |
Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Applications
- Water supply for residential buildings
- Irrigation systems in agriculture
- Drainage and sewage management
- Industrial water transfer
Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Benefits
- High flow rate for efficient water transfer
- Durable cast iron construction for longevity
- Corrosion-resistant stainless steel shaft
- Complete protection against dust and water ingress
Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Price List
| No. | Name | Price |
| 1 | Sistema 1.5 HP Submersible Sewage Pump With Grinder TPT150 Price | Contact us |
