Sistema 1.5 HP Submersible Sewage Pump TVX1500VA

1.1 kW (1.5 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Sistema Pumps, Sistema Sewage Pump, Sistema Submersible Pump

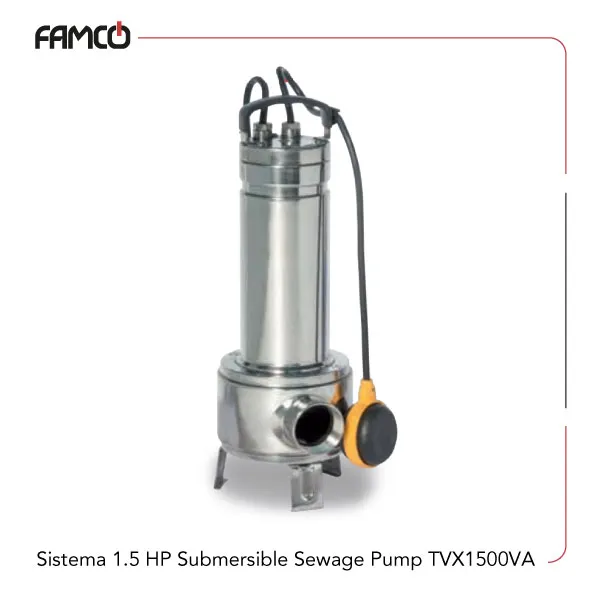

Overview of Sistema 1.5 HP Submersible Sewage Pump TVX1500VA

Sistema 1.5 HP submersible sewage pump TVX1500VA brings solid performance for homes or small installations that need steady water movement. With a power rating of 1.5 HP, equal to 1.1 kW, it offers strong output without feeling excessive for everyday use. It operates on a single-phase setup and draws 6.1 A, making it suitable for typical electrical connections found in many households. What stands out most is its ability to move water efficiently. It can reach a maximum flow rate of 27 m³/h, which also translates to 450 liters per minute. This makes it a practical choice for filling tanks, supplying irrigation systems, or supporting general water circulation where a high volume is helpful.

Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Specifications

This pump delivers 1.5 HP (1.1 kW) and runs on a single-phase power supply, making it suitable for a wide range of household and light professional uses. It draws 6.1 amperes and can move up to 27 cubic meters of water per hour, equal to 450 liters per minute. With a maximum head of 10 meters, it can handle water transfer tasks that involve moderate height differences. It is designed to work with liquids up to 35°C, making it a practical option for home water systems, irrigation, and similar applications. This Sistema submersible sewage pump can be submerged up to 5 meters, giving you flexibility when choosing where and how to install it. The inlet can handle particles up to 35 mm on the TVX 750/VA model and 50 mm on the standard version, allowing it to cope with different types of solids in the water. It operates properly with a minimum suction level of 120 mm, helping prevent dry running when water levels drop. Built for continuous operation, it can run for extended periods. The insulation class F offers solid thermal protection, and the IP 68 rating means it is fully sealed against dust and water, making it suitable for outdoor locations or submerged setups.

Specification	Value
Power (HP)	1.5
Power (kW)	1.1
Number of phases	Single-phase
Current	6.1 A
Maximum Flow rate (m3/h)	27
Maximum Flow rate (l/min)	450
Maximum head (m)	10
Liquid temperature up to	35°C
Maximum immersion depth	5 meters
Grain size inlet Ø	35 mm (TVX 750/VA), 50 mm
Min. suction level	120 mm
Continuous duty	Yes
Insulation Class	F
Protection degree	IP 68

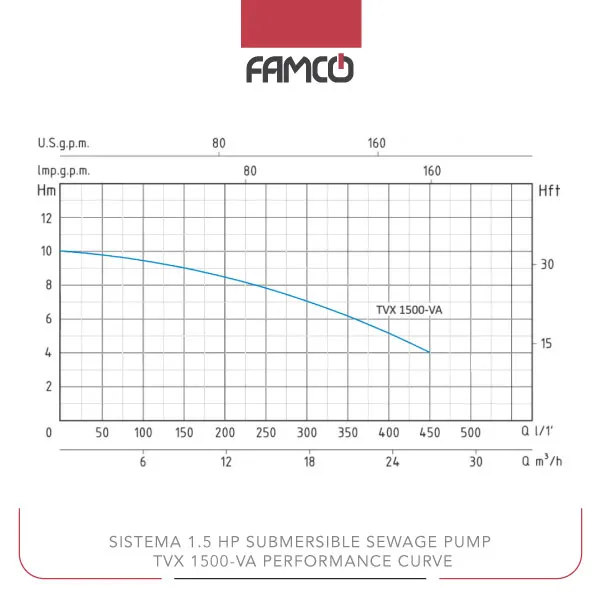

Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Performance Data

Q (m3/h)	0	3.6	5.4	7.2	9	12	15	21	27
450Q (l/min)	0	60	90	120	150	200	250	350	450
H (m)	10	9.7	9.5	9.3	9	8.5	8	6	4

Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Applications

Home water transfer and drainage
Garden irrigation systems
Industrial liquid handling
Construction site water removal

Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Benefits

High flow rate for quick water transfer
Durable and suitable for continuous use
Waterproof and dustproof IP 68 rating
Supports various inlet sizes for flexibility

Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Price List

No.	Name	Price
1	Sistema 1.5 HP Submersible Sewage Pump TVX1500VA Price	Contact us

Brand	Sistema
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (L/min)	450
Maximum Flow Rate (m3/h)	27
Number of Phases	Single-Phase
Maximum Delivery Head (m)	10
Degree of Protection	IP68
Insulation Class	F
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	35
