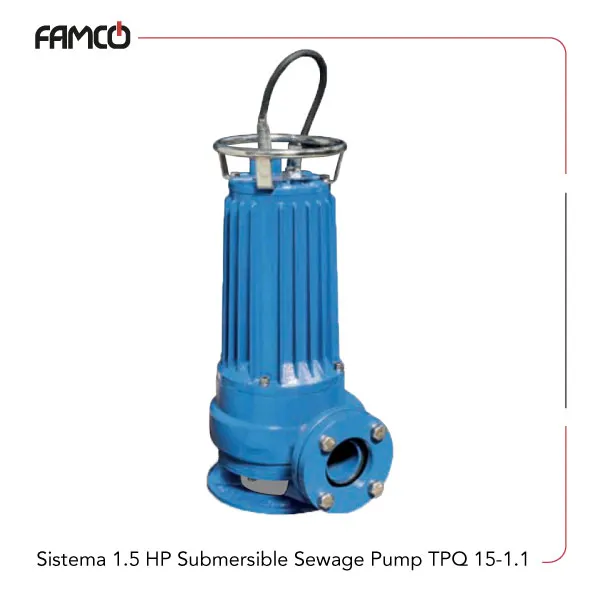

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1

1.1 kW (1.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump

Overview of Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1

Sistema 1.5 HP submersible sewage pump TPQ 15-1.1 delivers a power output of 1.5 HP, supported by a 1.1 kW motor that keeps performance steady during operation. It draws 2.3 A, making it suitable for setups where controlled energy use matters. The system is built to handle a substantial volume of water, reaching a maximum flow rate of 24 m³/h, which is equivalent to 400 liters per minute. With this capacity, it fits well in applications that call for strong, consistent movement of water without interruption.

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Specifications

This submersible pump offers a powerful 1.5 HP (1.1 kW) motor, capable of handling high flow rates up to 24 cubic meters per hour or 400 liters per minute. It can generate a maximum head of 12 meters, making it suitable for various water transfer tasks. This Sistema sewage pump is designed for continuous operation when fully submerged, ensuring reliable performance in demanding environments. It can operate with liquids up to 35°C for home applications, adhering to safety standards EN 60335-2-41, and up to 50°C for other uses. The device is compatible with liquids having a pH range from 4 to 10, making it versatile for different water qualities. Its maximum immersion depth is 10 meters, allowing it to be used in deep water settings. The pump’s robust construction and specifications make it ideal for tasks such as draining, water transfer, and other industrial or domestic applications requiring durable and efficient equipment.

Specification	Value
Power (HP)	1.5
Power (kW)	1.1
Current (A)	2.3
Maximum Flow rate (m3/h)	24
Maximum Flow rate (l/min)	400
Maximum head (m)	12
Liquid temperature	up to 35°C (for home use according to EN 60335-2-41)
Maximum immersion depth	10 meters (for home use according to EN 60335-2-41)
Liquid pH	from 4 to 10
Continuous duty	Yes, with completely submersed pump

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Performance Data

Q (m3/h)	6	9	12	15	18	21	24
Q (l/min)	100	150	200	250	300	350	400
H (m)	12	11	10	8	7.5	6	5.2

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Applications

Water transfer in residential and industrial settings
Drainage of flooded areas
Irrigation systems
Sewage and wastewater management

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Benefits

High flow rate for quick water transfer
Continuous operation when submerged
Versatile with temperature and pH compatibility
Suitable for deep water applications

Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Price List

No.	Name	Price
1	Sistema 1.5 HP Submersible Sewage Pump TPQ 15-1.1 Price	Contact us

Brand	Sistema
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (L/min)	400
Maximum Flow Rate (m3/h)	24
Maximum Delivery Head (m)	12
Maximum immersion depth (m)	10
Degree of Protection	IP68
Maximum Liquid Temperature (°C)	35
