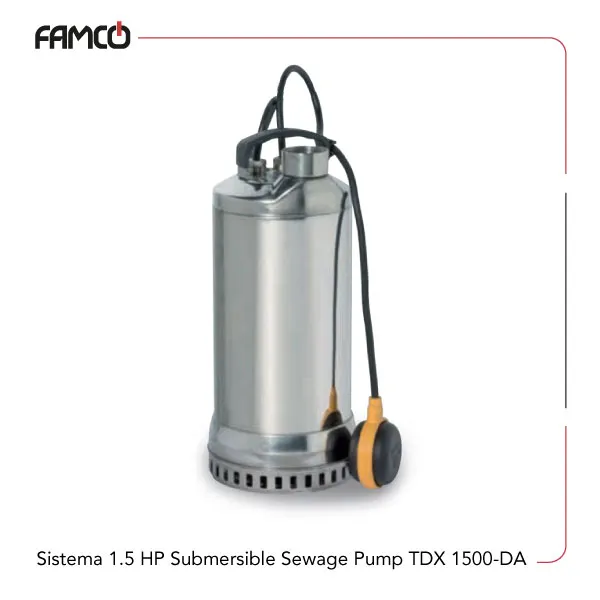

Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Specifications
Sistema submersible drainage pump TDX 1500-DA is equipped with a single-phase motor that delivers 1.5 HP (1.1 kW) and draws 6.5 amperes. It can handle up to 21 cubic meters of water per hour, equal to 350 liters per minute, making it suitable for a wide range of water transfer tasks. With a maximum head of 17 meters, it is capable of moving liquids across substantial vertical distances. This Sistema drainage pump weighs about 15.6 kilograms and features a 1.5-inch (DNM) pipe connection, compatible with standard piping systems. It is designed to operate with liquids up to 35°C, meeting EN 60335-2-41 requirements for home use and fitting well into other applications with the same temperature limits.
It comes with insulation class F for thermal protection and an IP68 protection rating, giving it strong resistance to dust and water entry. The pump can function while fully submerged up to 5 meters, making it suitable for wells, tanks, reservoirs, and similar installations. With its combination of power, protective features, and steady operating capability, this pump is well-suited for both residential and industrial water movement needs. If you want this rewritten in a more technical, commercial, or simplified tone, I can adjust it accordingly.
| Specification | Value |
| Number of phases | Single-phase |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Current (A) | 6.5 |
| Maximum Flow rate (m3/h) | 21 |
| Maximum Flow rate (l/min) | 350 |
| Maximum head (m) | 17 |
| Weight (kg) | 15.6 |
| Pipe (DNM) | 1″1/2 |
| Liquid temperature up to | 35°C |
| Temperature max. liquid | 35°C |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Maximum immersion depth | 5 meters |

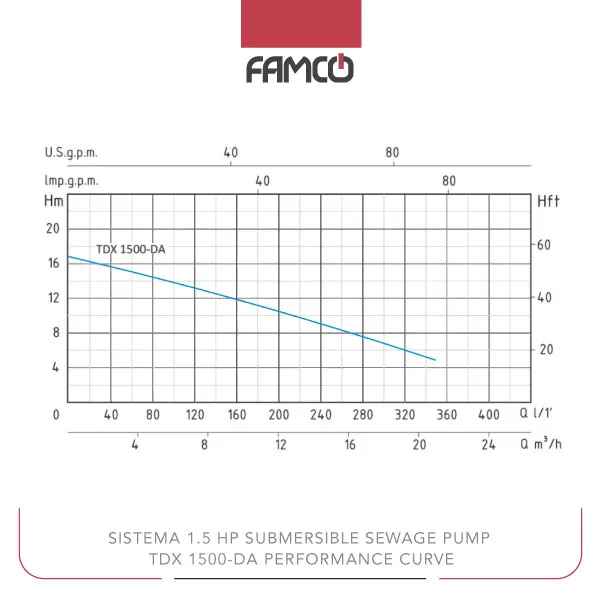

Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Performance Data
| Q (m3/h) | 0 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 18 | 21 |
| Q (l/min) | 0 | 60 | 90 | 120 | 150 | 200 | 250 | 300 | 350 |
| H (m) | 17 | 15.5 | 14.5 | 13.5 | 12.5 | 11 | 9 | 7 | 5 |
Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Applications
- Home water supply systems
- Irrigation for gardens and farms
- Water transfer in industrial settings
- Submersible use in wells and tanks
Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Benefits
- High flow rate for efficient water transfer
- Durable and protected against water and dust
- Easy to install with standard piping
- Suitable for submerged operation up to 5 meters
Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Price List
| No. | Name | Price |
| 1 | Sistema 1.5 HP Submersible Drainage Pump TDX 1500-DA Price | Contact us |
