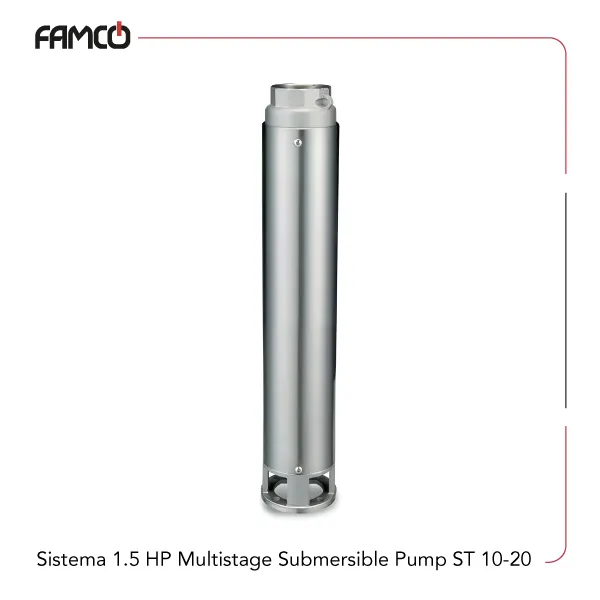

Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Specifications
Sistema multistage submersible water pump ST 10-20 features a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various pumping needs. It can handle a flow rate ranging from 0 to 3 cubic meters per hour, which translates to 0 to 50 liters per minute, providing flexibility for different applications. The head range is between 60 and 139 meters, allowing it to operate efficiently across various heights. The device is built with a durable cast iron body, ensuring longevity and resistance to wear. This Sistema submersible pump has an insulation class B, indicating good thermal insulation properties, and a protection degree of IP68, making it highly resistant to dust and water ingress. The maximum liquid temperature it can handle is 35°C, suitable for typical water applications. The weight of the product is 4.9 kilograms, making it relatively lightweight and easy to install or move as needed.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Flow rate (m3/h) | 0-3 |
| Flow rate (l/min) | 0-50 |
| Head range (m) | 60-139 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Liquid temperature (°C) | 35 |
| Weight (kg) | 4.9 |
Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Performance Data
| Q (m3/h) | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| Q (l/min) | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| H (m) | 139 | 131 | 127 | 120 | 111 | 101 | 90 | 75 | 60 |
Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Applications
- Water supply systems
- Irrigation in agriculture
- Industrial fluid transfer
- Cooling and circulation systems
Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Benefits
- Durable cast iron construction for long-lasting use
- High protection rating IP68 for outdoor and harsh environments
- Flexible flow rate and high head range for various needs
- Lightweight design for easy installation and handling
Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Price List
| No. | Name | Price |
| 1 | Sistema 1.5 HP Multistage Submersible Water Pump ST 10-20 Price | Contact us |
