Sistema 1.5 HP Multistage Submersible Pump ST 40-06

1.1 kW (1.5 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Sistema Pumps, Sistema Submersible Pump

Overview of Sistema 1.5 HP Multistage Submersible Pump ST 40-06

The ST 40-06 is a compact submersible pump, weighing just 3.4 kg, and easy to handle and install. Its high flow rate and maximum head make it suitable for applications requiring significant liquid movement and lifting. The device is built to operate in water depths up to 150 meters and can handle liquids at temperatures up to 35°C. Its robust construction includes an insulation class F and an IP68 protection rating, ensuring it performs well in harsh environments. Ideal for industrial, agricultural, or water management uses, this pump offers reliable performance and long-lasting durability.

Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Specifications

This product features a power output of 1.1 kW (1.5 HP), making it suitable for various demanding applications. It can handle a maximum flow rate of 12 cubic meters per hour, which is equivalent to 200 liters per minute. The maximum head it can achieve is 39 meters, providing strong performance for lifting liquids. The device weighs only 3.4 kilograms, making it lightweight and easy to install or move. This Sistema submersible pump is designed to operate at a maximum liquid temperature of 35°C, ensuring safe and efficient functioning within this range. The maximum depth of immersion is 150 meters, allowing it to be used in deep water environments. It features an insulation class of F, indicating good thermal resistance, and a protection class of IP68, meaning it is dust-tight and waterproof for prolonged submersion. These specifications make this product highly reliable for various industrial, agricultural, or water management tasks, offering durability and efficiency in challenging conditions.

Specification	Value
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow rate (m3/h)	12
Maximum Flow rate (l/min)	200
Maximum head (m)	39
Weight (kg)	3.4
Maximum depth of immersion	150 meters
Liquid temperature (°C)	35
Insulation class	F
Protection class	IP68

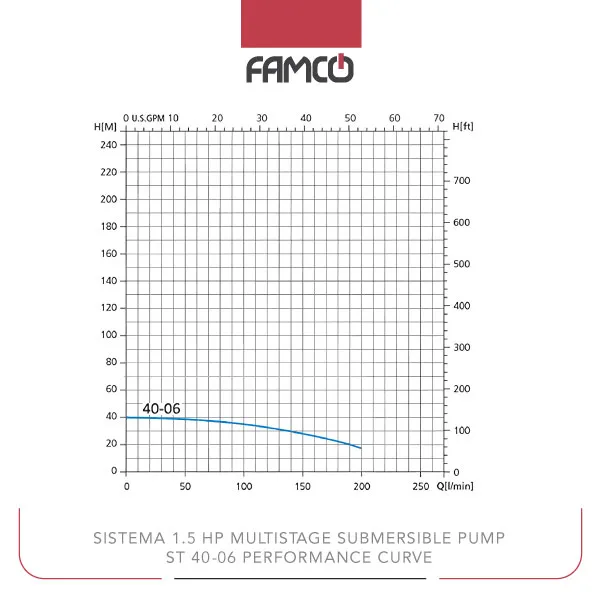

Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Performance Data

Q (m3/h)	0	4.8	5.4	6	7.2	8.4	9.6	10.8	12
Q (l/min)	0	80	90	100	120	140	160	180	200
H (m)	39	36	35	34	32	29	26	22	17

Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Applications

Water pumping in deep wells
Irrigation systems for agriculture
Industrial liquid transfer
Flood control and drainage

Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Benefits

High efficiency with a maximum flow rate of 12 m3/h
Suitable for deep water applications up to 150 meters
Lightweight design for easy handling and installation
Robust construction with IP68 protection for durability

Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Price List

No.	Name	Price
1	Sistema 1.5 HP Multistage Submersible Pump ST 40-06 Price	Contact us

Brand	Sistema
Power (HP)	1.5
Power (kW)	1.1
Maximum Flow Rate (L/min)	200
Maximum Flow Rate (m3/h)	12
Maximum Delivery Head (m)	39
Weight (kg)	3.4
Maximum immersion depth (m)	150
Maximum Liquid Temperature (°C)	35
Insulation Class	F
Degree of Protection	IP68
