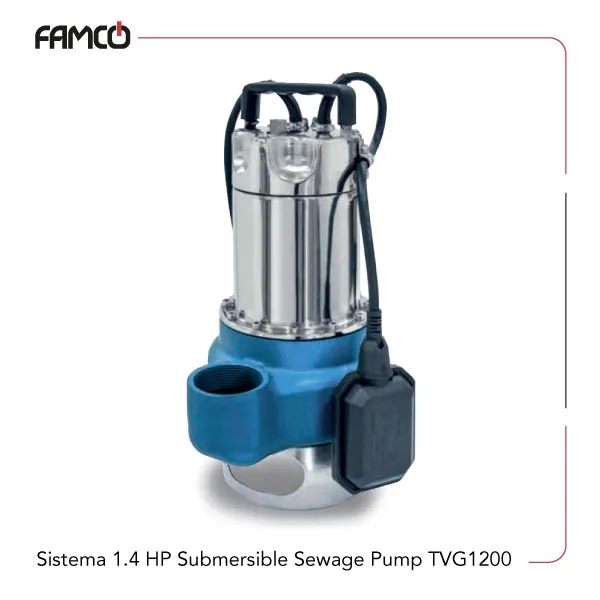

Sistema 1.4 HP Submersible Sewage Pump TVG1200 Specifications
Sistema 1.4 HP submersible sewage pump TVG1200 features a power output of 1.8 HP (1.4 kW) and operates on a single-phase power supply. It draws 6.5 amperes during operation and is designed for continuous duty. This Sistema submersible sewage pump can handle a maximum flow rate of 24 cubic meters per hour, which translates to 400 liters per minute, ideal for various water transfer tasks. It can generate a maximum head of 10 meters, providing sufficient pressure for different applications. The pump is capable of working with liquids up to 35°C, aligning with home use standards according to EN 60335-2-41, and can be used in other settings with the same temperature limit. It supports an immersion depth of up to 5 meters, making it suitable for deep well or sump applications. The inlet has a grain size capacity of Ø 35 mm, and the minimum suction level required is 65 mm. The device features an insulation class F, ensuring safety and durability, and has an IP 68 protection rating, making it resistant to dust and water ingress, suitable for harsh environments.
| Specification | Value |
| Power (HP) | 1.8 |
| Power (kW) | 1.4 |
| Number of phases | Single-phase |
| Current | 6.5 A |
| Maximum Flow rate (m3/h) | 24 |
| Maximum Flow rate (l/min) | 400 |
| Maximum head (m) | 10 |
| Liquid temperature up to | 35°C |
| Maximum immersion depth | 5 meters |
| Grain size inlet | Ø 35 mm |
| Min. suction level | 65 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection degree | IP 68 |

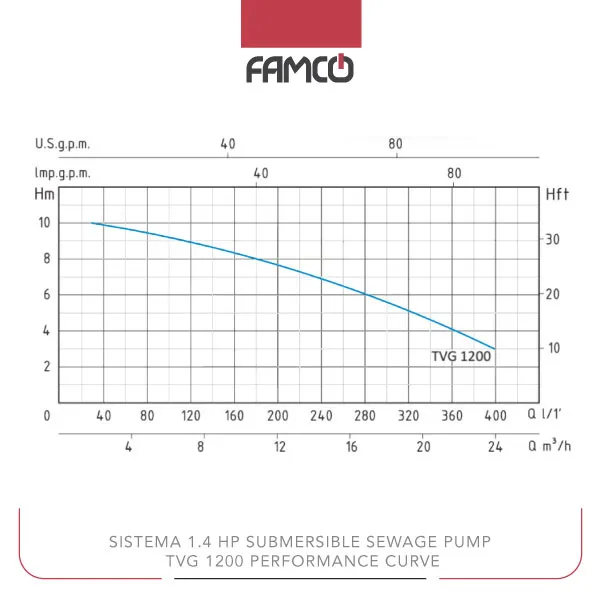

Sistema 1.4 HP Submersible Sewage Pump TVG1200 Performance Data
| Q (m3/h) | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 18 | 21 | 24 |
| Q (l/min) | 30 | 60 | 90 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| H (m) | 10 | 9.5 | 9.2 | 8.5 | 8.2 | 7.8 | 6.5 | 5.8 | 4.2 | 3 |
Sistema 1.4 HP Submersible Sewage Pump TVG1200 Applications
- Water transfer in residential settings
- Irrigation for farms and gardens
- Drainage of flooded areas
- Water supply for construction sites
Sistema 1.4 HP Submersible Sewage Pump TVG1200 Benefits
- High flow rate for quick water movement
- Durable and resistant to harsh conditions
- Continuous operation for long-term use
- Easy to install and operate
Sistema 1.4 HP Submersible Sewage Pump TVG1200 Price List
| No. | Name | Price |
| 1 | Sistema 1.4 HP Submersible Sewage Pump TVG1200 Price | Contact us |
