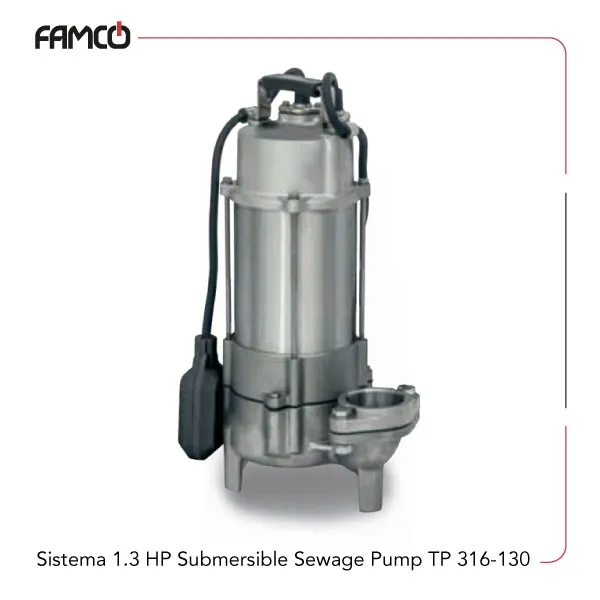

Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Specifications
Sistema 1.3 HP submersible sewage pump TP 316-130 delivers 1.3 HP (1 kW) of power and can operate on both single-phase and three-phase power supplies. It draws 4.8 A in single-phase mode and 1.9 A in three-phase mode. Capable of moving up to 24 cubic meters per hour, or 400 liters per minute, it handles a variety of water transfer tasks with ease. The pump can generate a maximum head of 12 meters, providing adequate pressure for different applications. It is designed to work with liquids up to 35°C for domestic use, meeting EN 60335-2-41 standards, and up to 40°C for other applications. This Sistema sewage pump can be submerged up to 10 meters, making it suitable for deep wells, tanks, or other installations, with a minimum suction level of 150 mm for smooth and effective operation. Built for continuous operation, it features insulation class F and an IP68 rating, offering protection against heat, dust, and water ingress. Thermic protection is also included to prevent overheating during extended use, making this pump a dependable solution for long-term residential and light industrial water transfer needs.
| Specification | Value |
| Power (HP) | 1.3 |
| Power (kW) | 1 |
| Number of phases | Single- and three-phase |
| Current | 4.8 A (single-phase), 1.9 A (three-phase) |
| Maximum Flow rate (m3/h) | 24 |
| Maximum Flow rate (l/min) | 400 |
| Maximum head (m) | 12 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 mt. (for home use according to EN 60335-2-41) |
| Min. suction level | 150 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection degree | IP68 |
| Thermic protection | Yes |
Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Performance Data
| Q (m3/h) | 1.5 | 3 | 6 | 8 | 9 | 12 | 24 |
| Q (l/min) | 25 | 50 | 100 | 133 | 150 | 200 | 400 |
| H (m) | 12 | 11.7 | 10.5 | 9.7 | 9.2 | 8 | 2 |
Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Applications
- Deep well water extraction
- Irrigation systems
- Water circulation in industrial processes
- Drainage and flood control
Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Benefits
- High flow rate for efficient water transfer
- Supports both single and three-phase power supplies
- Durable with IP68 protection and thermic safety
- Suitable for continuous operation in demanding environments
Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Price List
| No. | Name | Price |
| 1 | Sistema 1.3 HP Submersible Sewage Pump TP 316-130 Price | Contact us |
