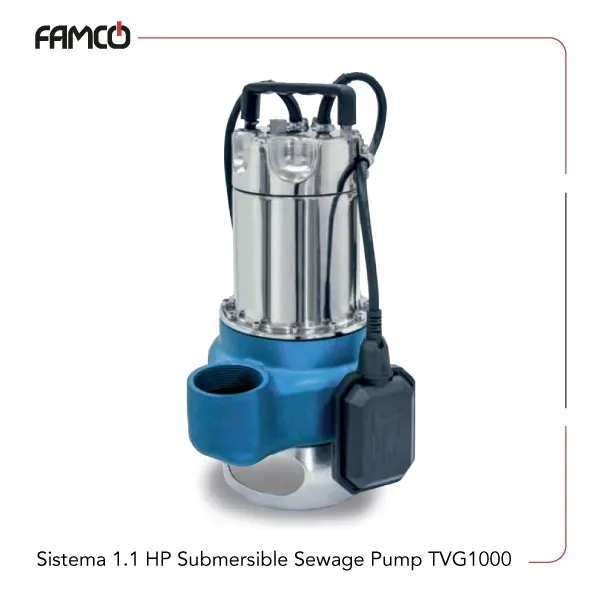

Sistema 1.1 HP Submersible Sewage Pump TVG1000 Specifications
Sistema 1.1 HP submersible sewage pump TVG1000 delivers 1.4 HP (1.1 kW) of power and runs on a single-phase supply, making it well-suited for both home and industrial use. It can move up to 18 cubic meters of water per hour, or 300 liters per minute, ensuring smooth and efficient fluid transfer. The pump can lift liquids to a maximum height of 7.8 meters, ideal for moderate elevation tasks. It is designed to handle liquids up to 35°C, meeting EN 60335-2-41 standards for domestic use, and is also suitable for other applications with similar temperature requirements. This Sistema sewage pump can be submerged up to 5 meters, providing flexibility in installation. Its inlet allows particles up to 35 mm to pass through, reducing the risk of clogging, while a minimum suction level of 65 mm supports effective operation at startup. Built for continuous operation, it comes with insulation class F for thermal protection and an IP 68 rating, making it resistant to dust and water for demanding environments. With its combination of power, versatility, and operational capability, this pump is a practical solution for a wide range of fluid transfer tasks in residential and industrial settings.
| Specification | Value |
| Power (HP) | 1.4 |
| Power (kW) | 1.1 |
| Number of phases | Single-phase |
| Ampere | 5 A |
| Maximum Flow rate (m3/h) | 18 |
| Maximum Flow rate (l/min) | 300 |
| Maximum head (m) | 7.8 |
| Liquid temperature up to | 35°C |
| Maximum immersion depth | 5 meters |
| Grain size inlet | Ø 35 mm |
| Min. suction level | 65 mm |
| Duty cycle | Continuous |
| Insulation Class | F |
| Protection Degree | IP 68 |

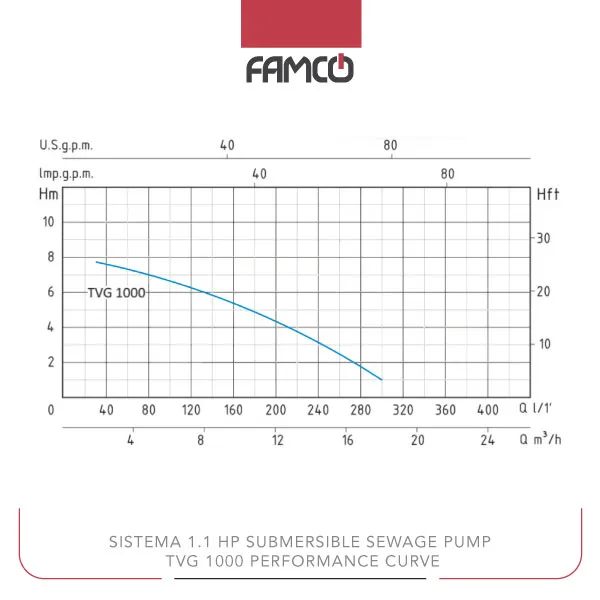

Sistema 1.1 HP Submersible Sewage Pump TVG1000 Performance Data
| Q (m3/h) | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 30 | 60 | 90 | 120 | 150 | 200 | 250 | 300 |
| H (m) | 7.8 | 7.5 | 7 | 6.2 | 5.8 | 4.2 | 4.2 | 3 | 1 |
Sistema 1.1 HP Submersible Sewage Pump TVG1000 Applications
- Home water transfer and drainage
- Irrigation systems in agriculture
- Industrial fluid handling
- Flood and emergency water removal
Sistema 1.1 HP Submersible Sewage Pump TVG1000 Benefits
- High efficiency with a 1.4 HP motor
- Durable and water-resistant IP 68 protection
- Suitable for continuous operation
- Handles liquids up to 35°C with ease
Sistema 1.1 HP Submersible Sewage Pump TVG1000 Price List
| No. | Name | Price |
| 1 | Sistema 1.1 HP Submersible Sewage Pump TVG1000 Price | Contact us |
