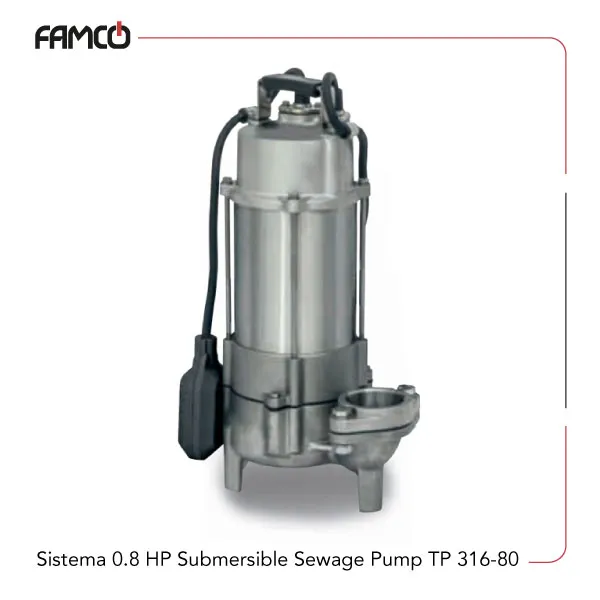

Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Specifications
Sistema 0.8 HP submersible sewage pump TP 316-80 delivers 0.8 HP (0.6 kW) and can operate on both single-phase and three-phase power supplies. It draws 3 A in single-phase mode and 1 A in three-phase mode. Capable of moving up to 12 cubic meters per hour, or 200 liters per minute, it is well-suited for a variety of water transfer tasks. The pump can achieve a maximum head of 9.2 meters, providing adequate pressure for different applications. This Sistema sewage pump is designed to handle liquids up to 35°C for domestic use in compliance with EN 60335-2-41 standards, and up to 40°C for other applications. The pump can be submerged up to 10 meters, making it ideal for submersible installations in homes or other settings. The minimum suction level of 150 mm ensures smooth startup and consistent operation. Built for continuous duty, the pump can run for extended periods without interruption. It features insulation class F for thermal protection, an IP68 rating for dust and water resistance, and integrated thermic protection to guard against overheating during prolonged use. Combining flexibility, power, and safety features, this pump is a practical choice for a wide range of residential and light industrial applications.
| Specification | Value |
| Power (HP) | 0.8 |
| Power (kW) | 0.6 |
| Number of phases | Single- and three-phase |
| Current | 3 A (single-phase), 1 A (three-phase) |
| Maximum Flow rate (m3/h) | 12 |
| Maximum Flow rate (l/min) | 200 |
| Maximum head (m) | 9.2 |
| Maximum liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Min. suction level | 150 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection degree | IP68 |
| Thermic protection | Yes |
Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Performance Data
| Q (m3/h) | 1.5 | 3 | 6 | 8 | 9 | 12 |
| Q (l/min) | 25 | 50 | 100 | 133 | 150 | 200 |
| H (m) | 9.2 | 8.5 | 7.3 | 6.3 | 6.1 | 5 |
Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Applications
- Water transfer in residential settings
- Irrigation and garden watering
- Drainage of flooded areas
- Industrial liquid handling
Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Benefits
- High flow rate for efficient water transfer
- Durable IP68 protection for harsh environments
- Suitable for continuous operation
- Flexible power options with single- and three-phase compatibility
Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Price List
| No. | Name | Price |
| 1 | Sistema 0.8 HP Submersible Sewage Pump TP 316-80 Price | Contact us |
