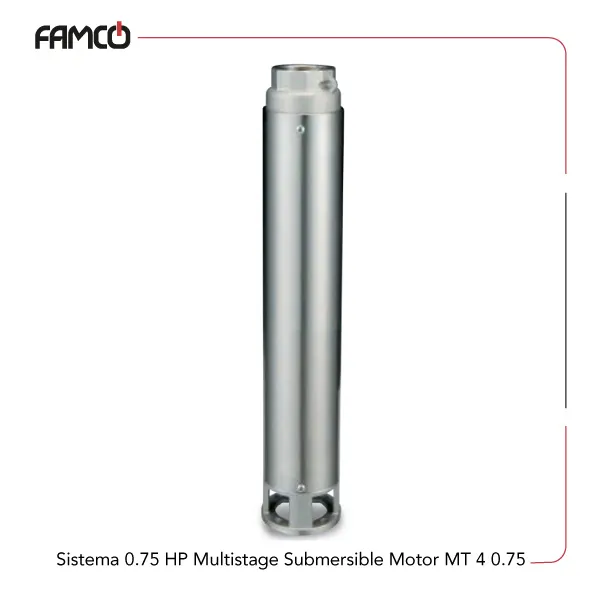

Sistema 0.75 HP Multistage Submersible Motor MT 4 0.75 Specifications
This motor offers a power output of 0.55 kW (0.75 HP), suitable for various industrial applications. It operates on a single-phase voltage of 230V or a three-phase voltage of 230/400V, providing flexibility for different power setups. The motor features 2 poles, which contribute to its efficient performance and speed control. Its insulation class is F, ensuring durability and safety under high temperatures. The protection degree is IP68, making it highly resistant to dust and water ingress, ideal for harsh environments. The Sistema 4 0.75 is a submersible motor with its external casing and motor shaft made from stainless steel AISI 304, offering excellent corrosion resistance and longevity. The mechanical seal is composed of ceramic and graphite, providing reliable sealing and reducing maintenance needs. Overall, this motor is designed for robustness, efficiency, and versatility in demanding industrial settings.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230/400 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
Sistema 0.75 HP Multistage Submersible Motor MT 4 0.75 Applications
- Water pumping systems
- Industrial machinery
- HVAC systems
- Food processing equipment
Sistema 0.75 HP Multistage Submersible Motor MT 4 0.75 Benefits
- High resistance to dust and water with IP68 rating
- Corrosion-resistant stainless steel casing and shaft
- Flexible power options for different setups
- Reliable mechanical seal for reduced maintenance
Sistema 0.75 HP Multistage Submersible Motor MT 4 0.75 Price List
| No. | Name | Price |
| 1 | Sistema 0.75 HP Multistage Submersible Motor MT 4 0.75 Price | Contact us |
