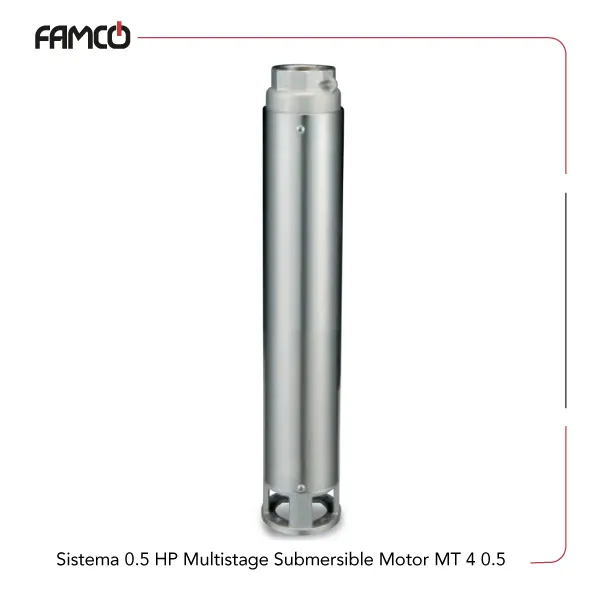

Sistema 0.5 HP Multistage Submersible Motor MT 4 0.5 Specifications
This pump features a maximum liquid temperature of 35°C, making it suitable for various liquids within this temperature range. It operates on both single-phase and three-phase power supplies, with voltages of 230V and 230/400V respectively, and runs at a frequency of 50Hz. The motor has 2 poles, ensuring efficient performance. Its insulation class is F, providing good thermal resistance. The device is protected by an IP68 rating, which means it is fully dust-tight and can withstand immersion in water. The motor shaft inside this Sistema submersible motor is made of stainless steel, offering durability and corrosion resistance. The mechanical seal is composed of ceramic and graphite, ensuring a reliable seal for liquids. The power output of this pump is 0.37 kW, equivalent to 0.5 HP, suitable for small to medium applications.
| Specification | Value |
| Max Liquid Temperature (°C) | 35 |
| Single and Three-Phase Voltage (V) | 230, 230/400 |
| Frequency (Hz) | 50 |
| Number of Poles | 2 |
| Insulation Class | F |
| Protection Degree | IP68 |
| Motor Shaft | Stainless Steel |
| Mechanical Seal | Ceramic/Graphite |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
Sistema 0.5 HP Multistage Submersible Motor MT 4 0.5 Applications
- Water transfer in residential and commercial settings
- Irrigation systems for agriculture
- Industrial fluid handling
- Fountain and water feature installations
Sistema 0.5 HP Multistage Submersible Motor MT 4 0.5 Benefits
- High durability with stainless steel shaft
- Suitable for harsh environments due to IP68 rating
- Flexible power options for different setups
- Reliable sealing with ceramic/graphite seal
Sistema 0.5 HP Multistage Submersible Motor MT 4 0.5 Price List
| No. | Name | Price |
| 1 | Sistema 0.5 HP Multistage Submersible Motor MT 4 0.5 Price | Contact us |
