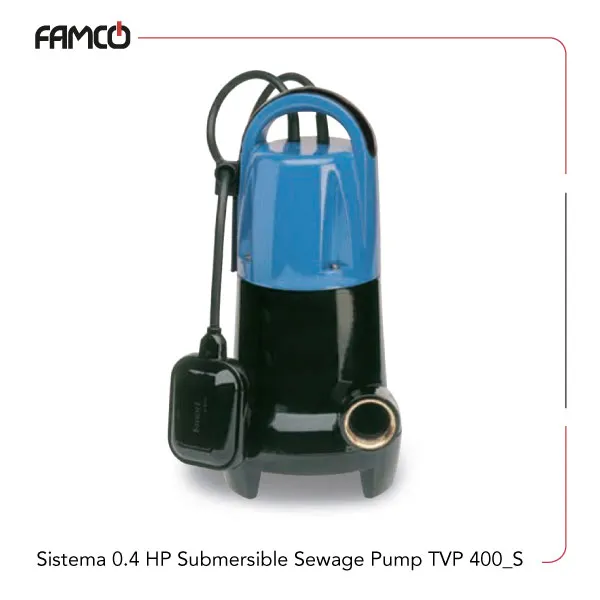

Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Specifications
Sistema submersible sewage pump TVP 400/S features a 0.5 HP (0.4 kW) motor, designed for efficient performance with a current draw of 2 A. It operates on a single-phase power supply, making it suitable for home and light industrial applications. The pump can handle a maximum flow rate of 8.4 cubic meters per hour, which translates to about 140 liters per minute, ideal for various water transfer tasks. It can generate a maximum head of 5.9 meters, providing sufficient pressure for different setups. This Sistema sewage pump is capable of working with liquids up to 35°C, aligning with safety standards for household use according to EN 60335-2-41. It can be submerged up to 5 meters deep, making it versatile for sump and drainage applications. The insulation class is F, ensuring good thermal resistance, while the protection degree is IP 68, meaning it is dust-tight and protected against continuous immersion in water. The impeller is made of Noryl, a durable and corrosion-resistant material, suitable for long-term use in wet environments. Overall, this pump combines power, durability, and safety features, making it a reliable choice for various liquid transfer needs.
| Specification | Value |
| Power (HP) | 0.5 |
| Power (kW) | 0.4 |
| Current (A) | 2 |
| Number of phases | Single-phase |
| Maximum Flow rate (m3/h) | 8.4 |
| Maximum Flow rate (l/min) | 140 |
| Maximum head (m) | 5.9 |
| Liquid temperature | up to 35°C |
| Maximum immersion depth (m) | 5 |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Impeller | Noryl |

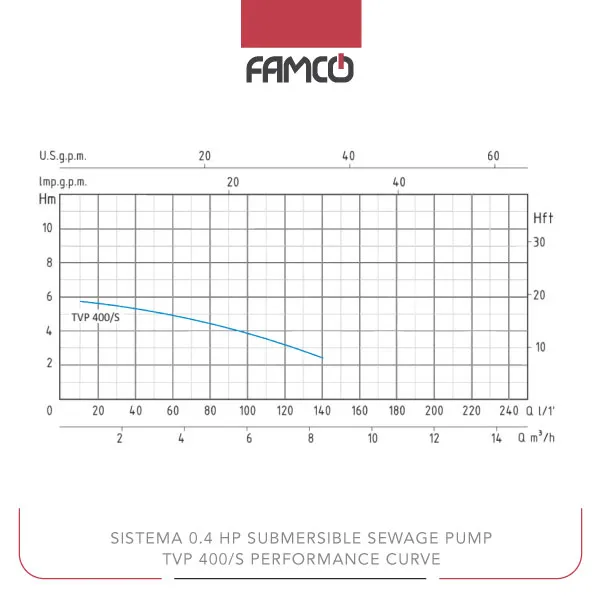

Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Performance Data
| Q (m3/h) | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 5.4 | 8.4 |
| Q (l/min) | 10 | 20 | 30 | 40 | 60 | 90 | 140 |
| H (m) | 5.9 | 5.8 | 5.7 | 5.2 | 4.6 | 3.9 | 2.2 |
Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Applications
- Sump and basement drainage
- Pool water removal
- Irrigation and garden watering
- Industrial liquid transfer
Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Benefits
- High flow rate for quick water removal
- Durable construction with IP 68 protection
- Suitable for continuous immersion up to 5 meters
- Energy-efficient with low power consumption
Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Price List
| No. | Name | Price |
| 1 | Sistema 0.4 HP Submersible Sewage Pump TVP 400/S Price | Contact us |
