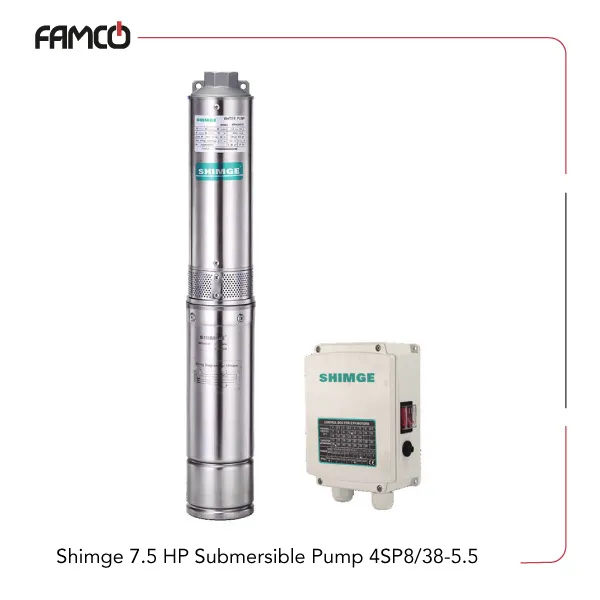

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5

5.5 kW (7.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 7.5 HP Submersible Pump 4SP8/38-5.5

The 4SP8/38-5.5 is a unique Shimge pump in many ways, including heads of above 200 meters and flow rates reaching as high as 180 l/min. This 7.5 HP Shimge submersible pump is more than suitable for deep well applications, capable of operating at significant depths up to 70 meters. Its unique design allows it to handle water with some impurities, including sand, hydrogen sulfide, and chloride ions. Suitable for both residential and industrial use, it can be powered by three-phase electricity, providing compatiblity for different installation environments. The pump’s high flow rate and impressive head range make it suitable for tasks requiring substantial water movement, such as irrigation, municipal water supply, and industrial processes. Its durable construction ensures long-term performance even under challenging conditions, making it a popular choice for water management projects.

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Specifications

This product is designed to operate efficiently under a variety of environmental conditions. It can withstand ambient temperatures below 40°C and is suitable for installation in boreholes with a diameter of 4 inches. The Shimge submersible pump handles water with sand content up to 100 grams per cubic meter, and it can manage water containing hydrogen sulfide levels up to 1.5 milligrams per liter. It also tolerates chloride ion concentrations up to 400 milligrams per liter, making it suitable for various water sources. The operating pH range is from 6.5 to 8.5, ensuring compatibility with most natural and treated water. The maximum 70-meter immersion depth allows for deep well applications. It supports three-phase (380V) power supplies, with a power output of 5.5 kilowatts or 7.5 horsepower. The pump can deliver a maximum flow rate of 180 liters per minute, with a head range from 93 to 221 meters, and a maximum head of 237 meters, making it suitable for high-lift applications and water transfer tasks.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	5.5
power (HP)	7.5
Max. flow rate (l/min)	180
head range (m)	221-93
max. head (m)	237

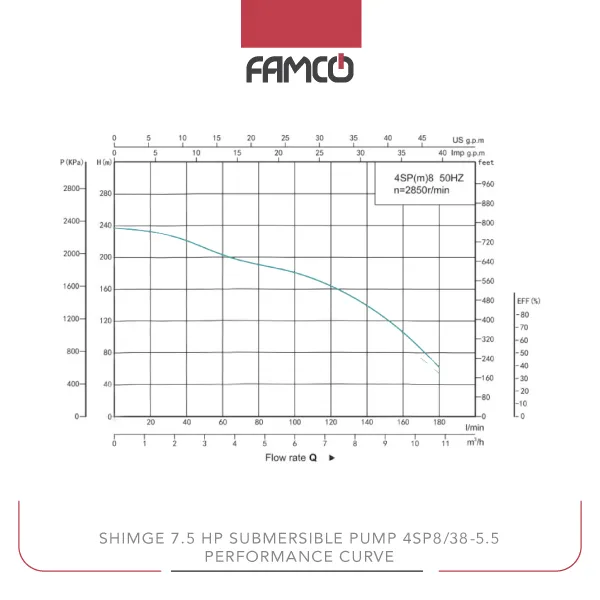

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	237	232	221	203	191	181	164	140	106	62

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Applications

Deep well water extraction
Irrigation systems in agriculture
Municipal water supply projects
Industrial water transfer and processing

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Benefits

Handles high water flow rates efficiently
Suitable for deep borehole installations
Operates reliably under various water qualities
Flexible power options for different setups

Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Price List

No.	Name	Price
1	Shimge 7.5 HP Submersible Pump 4SP8/38-5.5 Price	Contact us

Brand	Shimge
Applications	Agriculture, Industrial areas, Industrial water transfer
Power (kW)	5.5
Power (HP)	7.5
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	237
