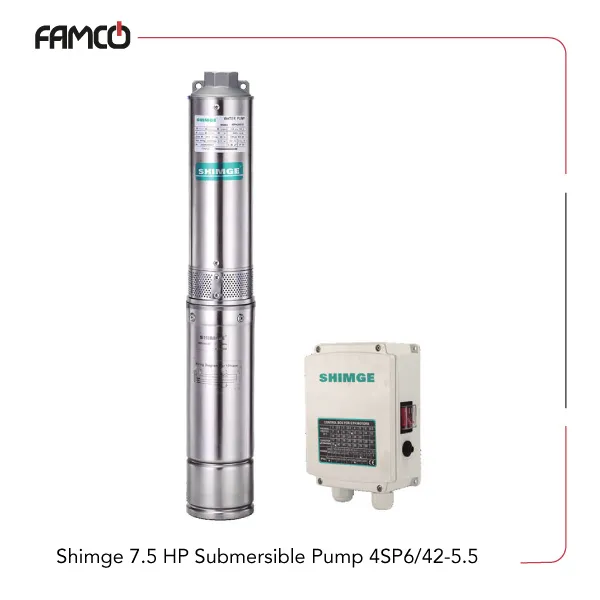

Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Specifications
This product operates efficiently in environments with temperatures below 40°C and can handle sand content up to 100 grams per cubic meter. It is designed to withstand water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter. The device functions within a pH range of 6.5 to 8.5, ensuring compatibility with various water qualities. It can be installed at depths up to 70 meters in 4-inch boreholes, making this Shimge submersible pump suitable for deep water extraction. The motor runs on a three-phase voltage of 380 volts, providing reliable power. It has a power output of 5.5 kilowatts, equivalent to 7.5 horsepower, delivering a maximum flow rate of 70 liters per minute. The head range varies from 278 meters to 130 meters, with a maximum head capacity of 298 meters, making it ideal for high-head applications and deep well pumping systems.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Installation | in 4-inch boreholes |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (l/min) | 70 |
| Head range (m) | 278-130 |
| Max. head (m) | 298 |
Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | head range (m) |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| head (m) | 298 | 282 | 273 | 250 | 223 | 189 | 151 | 101 | 278-130 |
Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water processing
Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Benefits
- Reliable operation at significant depths
- High flow rate for efficient water delivery
- Suitable for water with moderate contaminants
- Easy installation in standard boreholes
Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Pump 4SP6/42-5.5 Price | Contact us |
There are no reviews yet.
