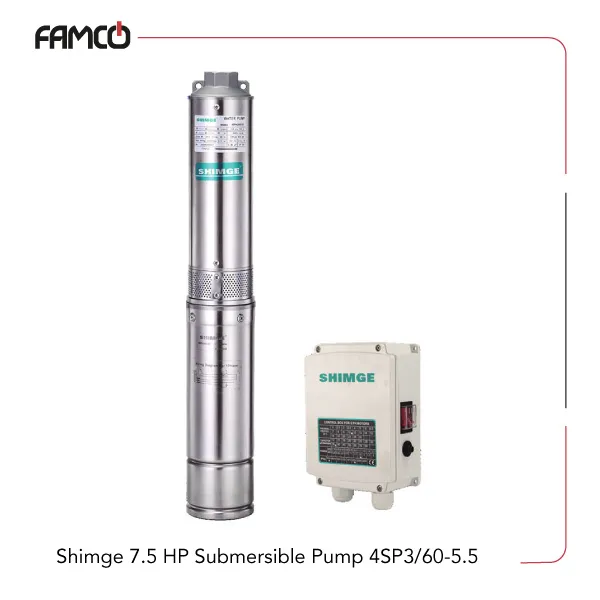

Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Specifications
This Shimge product operates with a maximum ambient temperature of less than 40°C. It can handle sand content up to 100 grams per cubic meter and withstand hydrogen sulfide levels up to 1.5 milligrams per liter. The chloride ion concentration should not exceed 400 milligrams per liter, and the pH level of the water should be between 6.5 and 8.5 for optimal performance. It is designed for installation in 4-inch boreholes with a maximum immersion depth of 70 meters.
The Shimge submersible pump runs on a three-phase power supply of 380 volts and consumes 5.5 kilowatts, equivalent to 7.5 horsepower. It can deliver a maximum flow rate of 80 liters per minute, with a head range from 429 meters down to 241 meters, and a maximum head of 436 meters, making it suitable for various water pumping applications.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| three-phase voltage (V) | 380 |
| installation | in 4-inch boreholes |
| power (kW) | 5.5 |
| power (HP) | 7.5 |
| Max. flow rate (l/min) | 80 |
| head range (m) | 429-241 |
| max. head (m) | 436 |
Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Performance Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| head (m) | 436 | 434 | 429 | 415 | 387 | 352 | 273 | 204 | 125 |
Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Applications
- Deep well water extraction for agriculture
- Municipal water supply systems
- Industrial water processing
- Irrigation projects
Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Benefits
- High efficiency at deep depths
- Reliable performance in challenging water conditions
- Easy installation in standard boreholes
- Energy-efficient operation with 5.5 kW power
Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Pump 4SP3/60-5.5 Price | Contact us |
