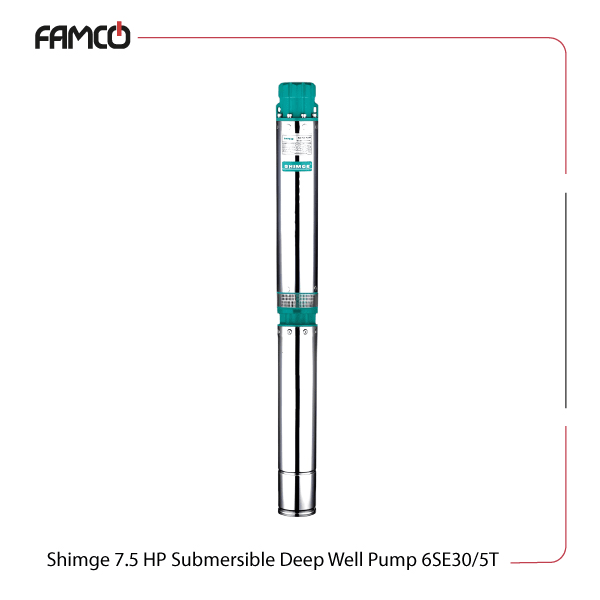

Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Specifications
This product features a powerful 5.5 kW (7.5 HP) motor designed for efficient water pumping. This submersible pumping solution is effective for use with chloride ion concentrations below 400 mg/L, further expanding its range of applications. It operates in environments with temperatures below 40°C and can handle water with up to 0.01% sand content, 1.5 mg/L hydrogen sulfide levels. The pump is suitable for water pH levels between 6.5 and 8.5. It can be submerged up to 70 meters and operates on a 380V three-phase power supply. The maximum flow rate is 667 liters per minute, equivalent to 40 cubic meters per hour. The maximum delivery head it reaches is anywhere from 29 to 65 meters. Designed for installation in 6-inch boreholes, this submersible pump offers reliable performance in demanding conditions, with efficient water extraction and transfer for agricultural, industrial, or municipal use.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 667 |
| Max. flow rate (m3/h) | 40 |
| Max. delivery head (m) | 29-65 |
| Placement in | 6 inch boreholes |

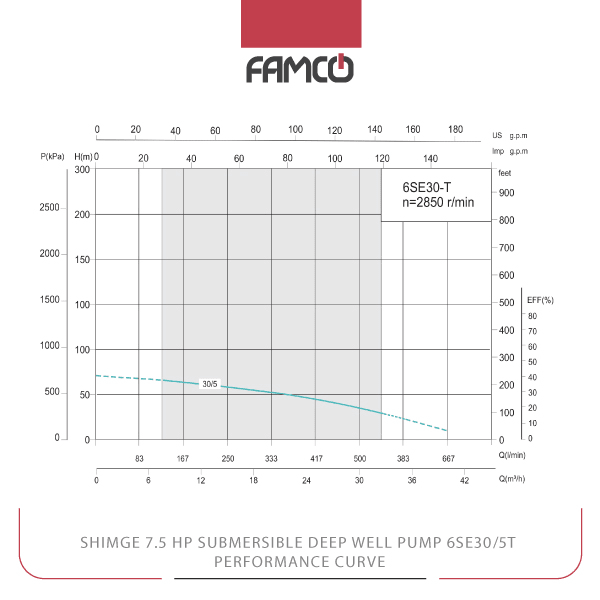

Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Performance Data
| M3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| l/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head (m) | 72 | 68 | 64 | 59 | 53 | 45 | 35 | 23 | 10 |
Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Applications
- Agricultural irrigation systems
- Industrial water supply
- Municipal water distribution
- Deep borehole water extraction
Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Benefits
- High efficiency with powerful 5.5 kW motor
- Suitable for deep boreholes up to 70 meters
- Handles water with minimal sand and contaminants
- Reliable performance in demanding environments
Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Deep Well Pump 6SE30/5T Price | Contact us |
