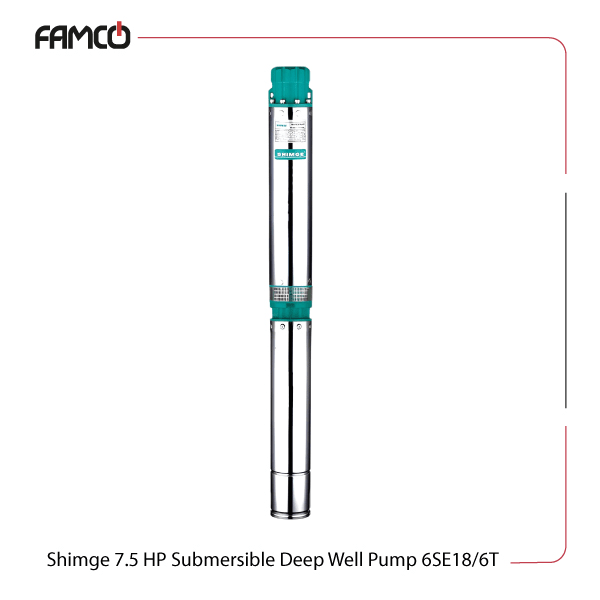

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T

5.5 kW (7.5 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T

Suitable for deep water applications, the 6SE18/6T can operate at depths up to 70 meters. With a dependable 5.5 kW motor, this Shimge well pump offers a flow rate that reaches 450 l/min. Its ability to handle water with minimal 0.01% sand and low levels of harmful substances is also noticeable. The pump’s 32 to 80 range of achieved head heights is used in irrigation, water supply, and other industrial uses. Its compatibility with a 380V three-phase power supply ensures stable operation in demanding environments. Overall, this pump combines strength, efficiency, and adaptability.

Related Products

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Specifications

This product is a powerful and reliable water pump designed for industrial and large-scale water transfer tasks. This product features a power output of 5.5 kW (7.5 HP), suitable for various industrial applications. It operates efficiently in environments with ambient temperatures below 40°C. Submersible pumps must handle various water qualities, and this one tolerates sand content up to 0.01%, hydrogen sulfide levels below 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5. To handle tasks at different depths, the maximum immersion depth is 70 meters. It requires a three-phase power supply of 380V. The pump can deliver a maximum flow rate of 450 liters per minute or 27 cubic meters per hour. The maximum delivery head ranges from 32 to 80 meters with strong water pressure.

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T

Specification Value
Power (kW) 5.5
Power (HP) 7.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 450
Max. flow rate (m3/h) 27
Max. delivery head (m) 32≈80

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Performance Data

M3/h 0 3 6 9 12 15 18 21 24 27
l/min 0 50 100 150 200 250 300 350 400 450
Head (m) 85 82 79 75 68 60 51 41 29 16

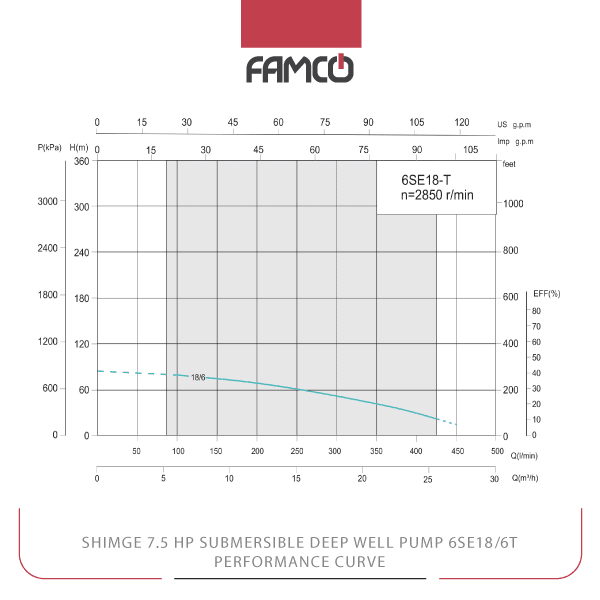

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Performance Curve

Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Applications

  • Irrigation systems for agriculture
  • Water supply for industrial facilities
  • Deep well water extraction
  • Municipal water treatment projects



Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Benefits

  • High power and efficiency for demanding tasks
  • Suitable for deep water applications up to 70 meters
  • Handles water with minimal sand and low harmful substances
  • Flexible flow rate and head for various needs



Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Price List

No. Name Price
1 Shimge 7.5 HP Submersible Deep Well Pump 6SE18/6T Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
