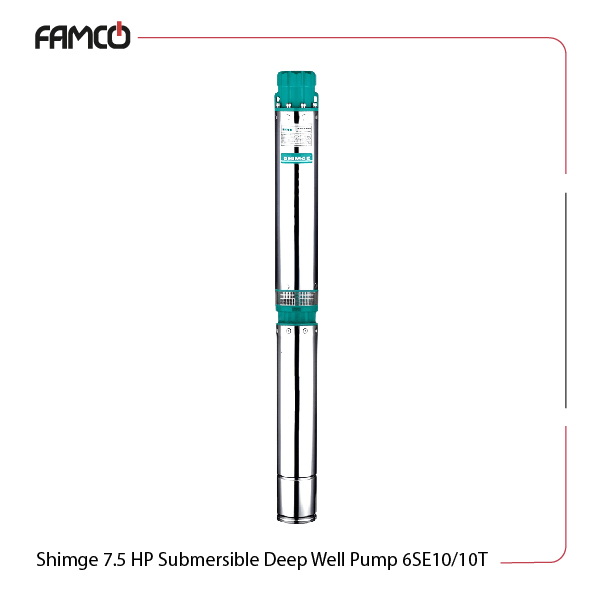

Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Specifications
The Shimge deep well pump delivers a consistent water output of up to 18 m³/h, serving both irrigation and industrial water systems. The motor operates at 2850 r/min, which provides the torque and stability needed for deep well operations. Its 5.5 kW power output ensures dependable lifting over high heads, reaching a maximum of 129 meters. Built to function in water temperatures up to 40°C, these 6-inch submersible pumps suit various deep groundwater pumping needs. The durable build and compatibility with 380V three-phase systems make it a versatile option for large-scale water supply.
| Specification | Value |
| Model | 6SE10/10T |
| Power (HP) | 7.5 |
| Power (kW) | 5.5 |
| Max ambient temperature (°C) | <40 |
| Suitable pH range | 6.5–8.5 |
| Maximum immersion (m) | 70 m below static water table |
| Maximum delivery head (m) | 53≈129 |
| Maximum flow rate (l/min) | 300 |
| Maximum flow rate (m³/h) | 18 |
| Voltage | 380V (Three-phase) |
| Rotation speed (r/min) | 2850 |

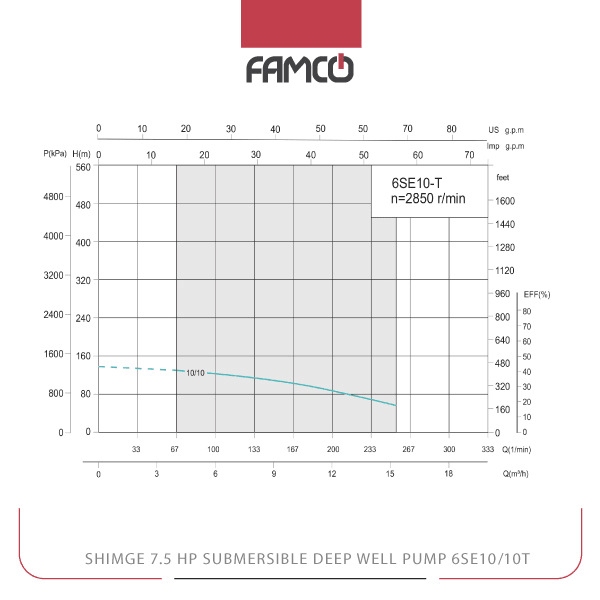

Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Performance Data
| l/min | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| m³/h | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | 300 |
| H | 140 | 133 | 129 | 123 | 115 | 102 | 87 | 69 | 48 | 25 |
Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Applications
- Water extraction for agricultural irrigation
- Groundwater pumping in rural and remote areas
- Industrial water supply systems
- Deep well water delivery for large properties
Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Benefits
- Handles deep installations with a 70 m maximum immersion
- High delivery head supports elevated or long-distance water transfer
- Consistent output of 4 m³/h for stable supply
- Compatible with 380V systems commonly found in industrial setups
Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Deep Well Pump 6SE10/10T Price | Contact us |
