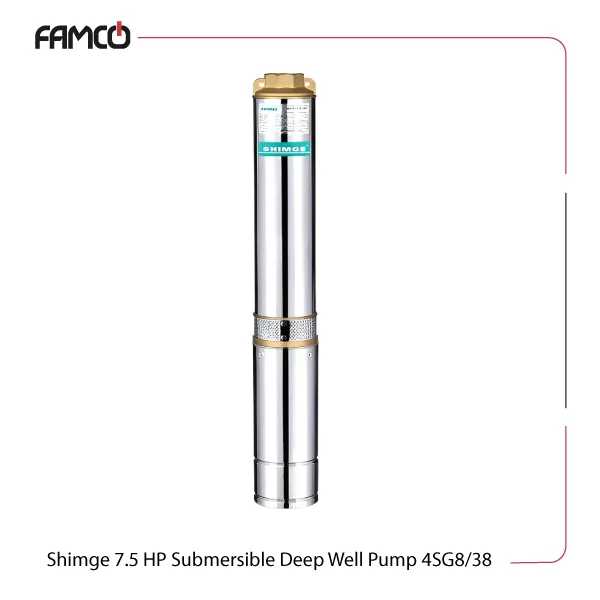

Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Specifications
This product features a power output of 5.5 kW (7.5 HP), suitable for various industrial and water management applications. It operates best in environments with ambient temperatures below 40°C. To support different water qualities, it can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It maintains optimal performance within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters, making an applicable deep well solution out of this submersible pump. This series of Shimge pumps requires a 380V three-phase power supply. The pump can deliver a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour. The unmatched delivery head ranges from 62 to 237 meters with strong pressure.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 62-237 |

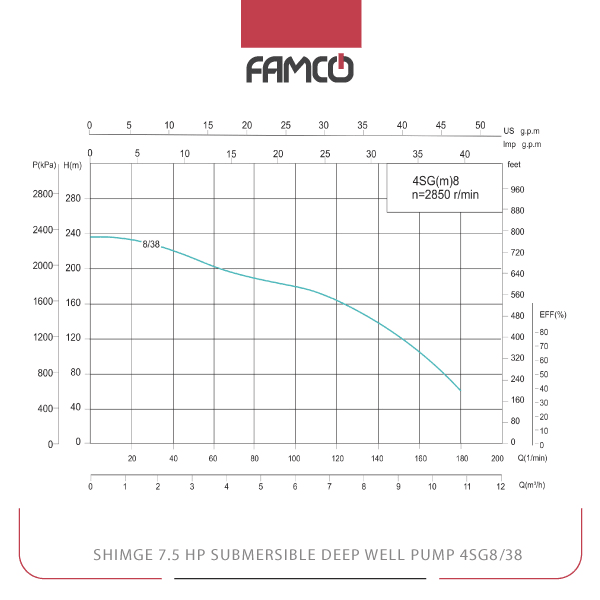

Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 237 | 232 | 221 | 203 | 191 | 181 | 164 | 140 | 106 | 62 |
Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Applications
- Deep well water extraction
- Industrial water supply systems
- Irrigation and agricultural projects
- Municipal water treatment
Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Benefits
- High flow rate for efficient water transfer
- Deep immersion capability for versatile use
- Reliable operation under various water qualities
- Strong pressure with adjustable head range
Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Deep Well Pump 4SG8/38 Price | Contact us |
