Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34

Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Specifications

This powerful pump operates at 5.5 kW (7.5 HP) and is designed for demanding applications. It can handle environments with temperatures below 40°C and is resistant to sand up to 0.01%, hydrogen sulfide up to 1.5mg/L, and chloride ions up to 400mg/L. The pump supports a maximum immersion depth of 70 meters and runs on a three-phase voltage of 380V. It offers a maximum flow rate of 180 liters per minute, which translates to 10.8 cubic meters per hour. The delivery head varies between 56 and 212 meters, making an applicable submersible pump out of the 4SG8/34. Its construction vouches for a durable performance even in challenging conditions, such as water supply, irrigation, and industrial processes requiring high flow and pressure capabilities.

Specification	Value
Power (kW)	5.5
Power (HP)	7.5
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	56-212

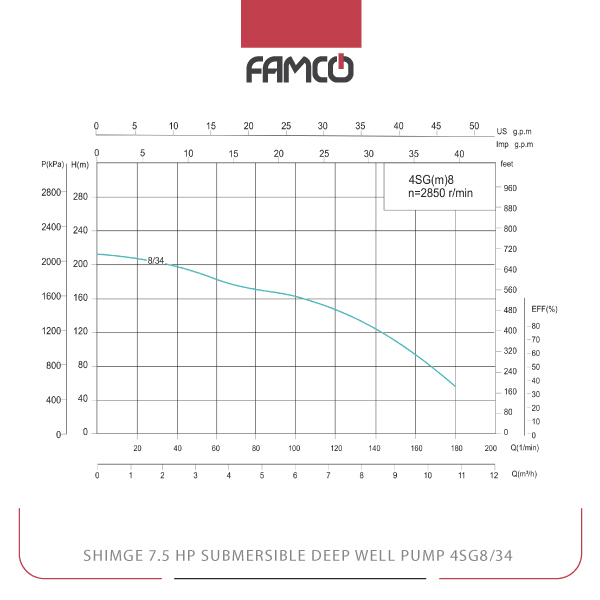

Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	212	208	198	182	171	162	147	125	95	56

Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Applications

• Water supply systems
• Irrigation in agriculture
• Industrial fluid transfer
• Deep well water extraction



Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Benefits

• High flow rate and pressure for demanding tasks
• Durable construction for tough environments
• Supports deep immersion up to 70 meters
• Efficient operation with stable power supply



Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Price List

No.	Name	Price
1	Shimge 7.5 HP Submersible Deep Well Pump 4SG8/34 Price	Contact us
