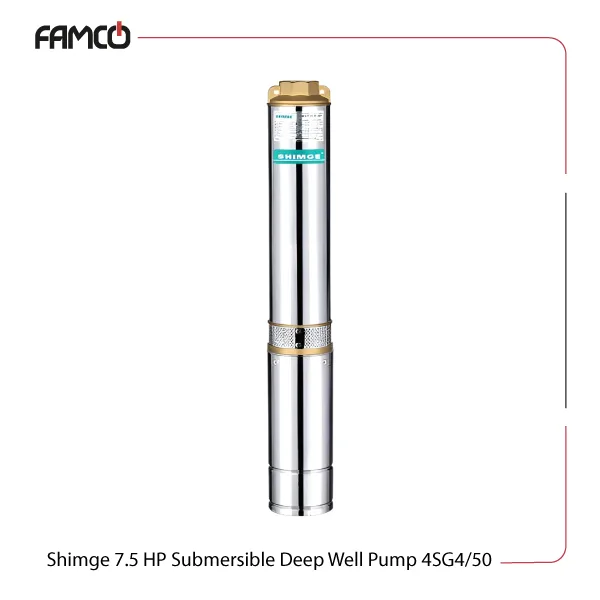

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50

5.5 kW (7.5 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50

Prioritizing performance, the 4SG4/50 is equipped with a 5.5 kW motor to operate consistently. This three-phase pump handles water with minor impurities, such as sand and hydrogen sulfide. It can also operate efficiently within a wide pH range (6.5-8.5). Its ability to be submerged up to 70 meters makes it ideal for deep well applications. With a maximum flow rate of 100 liters per minute and a delivery head reaching up to 364 meters, this pump is perfect for high-pressure water delivery over long distances. Its three-phase power supply ensures stable operation, making it a dependable choice for demanding environments.

Related Products

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Specifications

This product features a powerful 5.5 kW (7.5 HP) output that serves tough working conditions. It provides a maximum delivery head between 74 and 364 meters. What’s more is that it can operate in ambient temperatures below 40°C and is suitable for handling contaminated water (with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L).

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50

To tolerate submerged conditions, it can be immersed up to 70 meters. Running on a three-phase voltage of 380V, this submersible pump provides a maximum flow rate of 100 liters per minute, equivalent to 6 cubic meters per hour.

Specification Value
Power (kW) 5.5
Power (HP) 7.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 74-364

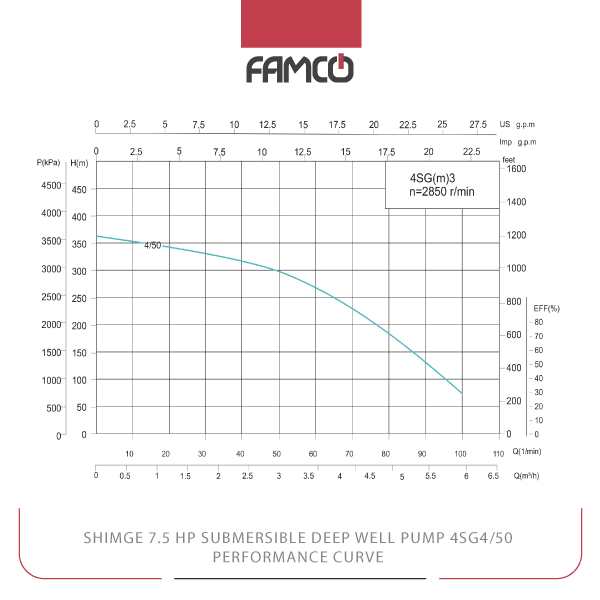

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Performance Curve

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 364 352 342 330 318 299 269 230 183 131 74

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Performance Curve

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Applications

  • Deep well water extraction
  • Irrigation systems in agriculture
  • Municipal water supply projects
  • Industrial water transfer



Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Benefits

  • High efficiency with a powerful motor
  • Suitable for various water qualities
  • Deep immersion capability for versatile use
  • High pressure and flow rate for demanding tasks



Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Price List

No. Name Price
1 Shimge 7.5 HP Submersible Deep Well Pump 4SG4/50 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (L/min)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
