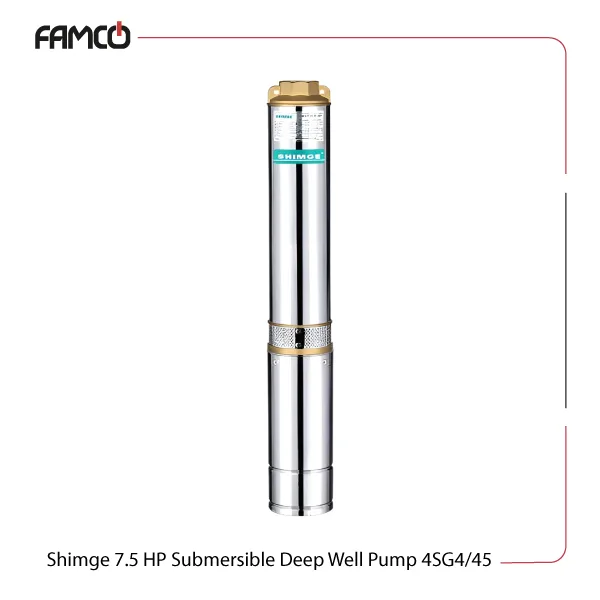

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45

5.5 kW (7.5 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45

Even deeper boreholes are reachable with a 70-meter immersion depth of this pump. Its 5.5 kW motor delivers up to 6 m³/h, making it perfect for residential, agricultural, or industrial applications. Thanks to its design, it operates in environments with specific water qualities, including low sand content and moderate levels of hydrogen sulfide and chlorides. Easy to install and operate, it provides a steady 100 l/min water flow. Whether for well water extraction or other deep water needs, this pump offers a practical solution with excellent performance and durability.

Related Products

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Specifications

This product features a powerful 5.5 kW (7.5 HP) motor designed for efficient water pumping. It operates in environments with ambient temperatures below 40°C and can handle water with minimal sand content up to 0.01%. The pump is suitable for water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so more liquids stay compatible. The pump can be immersed up to 70 meters deep for deep well applications. It runs on a three-phase voltage of 380V only while the maximum flow rate is 100 liters per minute, or 6 cubic meters per hour. The product’s delivery head ranges from 67 to 328 meters. Designed for placement in 4-inch boreholes, this pump is suitable for a wide range of water extraction needs. You may incorporate this submersible pump sysyem for residential or industrial use.

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45

Specification Value
Power (kW) 5.5
Power (HP) 7.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 67-328
Placement in 4 inch boreholes

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 328 317 308 297 286 269 242 207 165 118 67

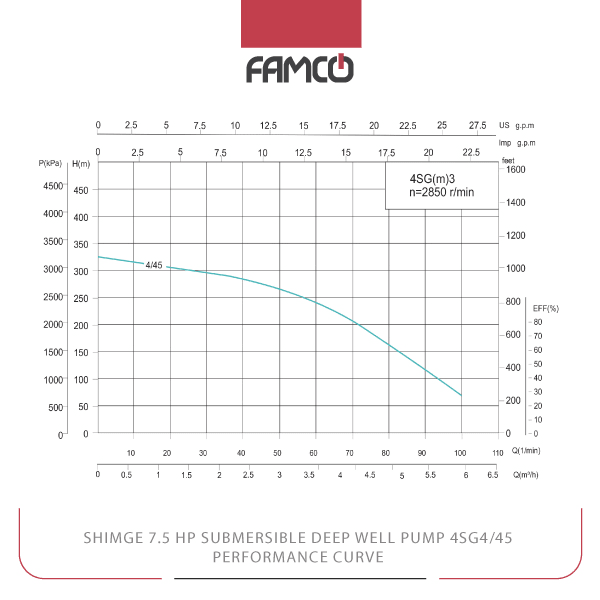

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Performance Curve

Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Applications

  • Deep well water extraction
  • Residential water supply systems
  • Agricultural irrigation
  • Industrial water pumping



Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Benefits

  • High efficiency with a powerful 5.5 kW motor
  • Suitable for deep boreholes up to 70 meters
  • Handles water with specific qualities, including low sand and moderate contaminants
  • Reliable and durable for continuous operation



Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Price List

No. Name Price
1 Shimge 7.5 HP Submersible Deep Well Pump 4SG4/45 Price Contact us
