Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60

Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Specifications

This product features a power output of 5.5 kW (7.5 HP), suitable for various demanding applications. It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. The maximum immersion depth is 70 meters, making it ideal for deep water applications. It supports a three-phase voltage of 380V and can deliver a maximum flow rate of 80 liters per minute, equivalent to 4.8 cubic meters per hour. The maximum delivery head this submersible pump generates reaches 436 meters.

Specification	Value
Power (kW)	5.5
Power (HP)	7.5
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	80
Max. flow rate (m3/h)	4.8
Max. delivery head (m)	436

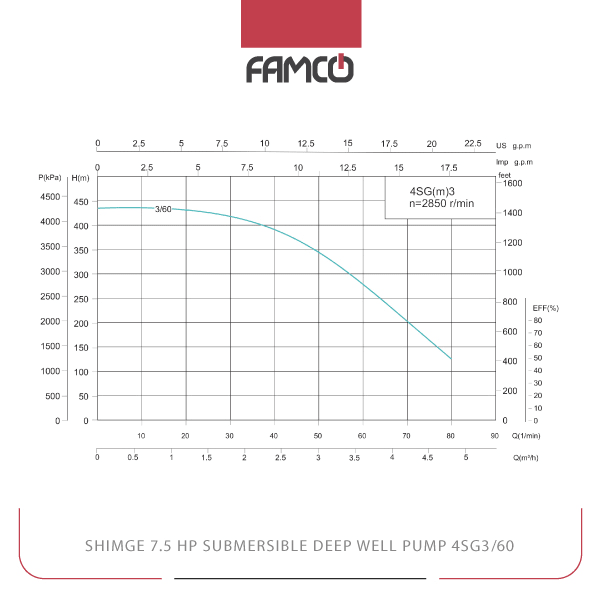

Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Performance Data

M3/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
Head (m)	436	434	429	415	387	352	273	204	125

Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Applications

• Deep well water extraction
• Irrigation systems in agriculture
• Industrial water transfer
• Municipal water supply projects



Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Benefits

• High power output for demanding tasks
• Flexible voltage options for different setups
• Handles water with minor impurities efficiently
• Deep immersion capability up to 70 meters



Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Price List

No.	Name	Price
1	Shimge 7.5 HP Submersible Deep Well Pump 4SG3/60 Price	Contact us
