Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Specifications
This product features a power output of 5.5 kW (7.5 HP), suitable for various industrial and water pumping applications. It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so it can handle different water qualities. The maximum immersion depth is 70 meters, making this product, as categorized under submersible pumps, a solid choice. This pumping solution requires a three-phase power supply of 380V. The pump can deliver a maximum flow rate of 80 liters per minute or 4.8 cubic meters per hour, with a maximum delivery head ranging from 115 to 400 meters, which is why this pump easily integrates into various pumping setups.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 115-400 |

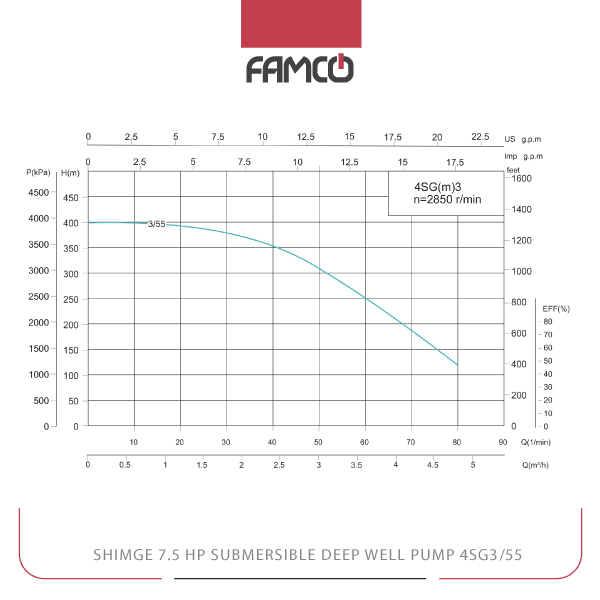

Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 400 | 398 | 393 | 380 | 355 | 323 | 250 | 187 | 115 |
Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Applications
- Industrial water supply systems
- Deep well water extraction
- Irrigation for agriculture
- Municipal water treatment
Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Benefits
- High efficiency with 5.5 kW power output
- Suitable for deep water applications up to 70 meters
- Handles water with impurities like sand and chloride
- Reliable operation in various environmental conditions
Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Deep Well Pump 4SG3/55 Price | Contact us |
