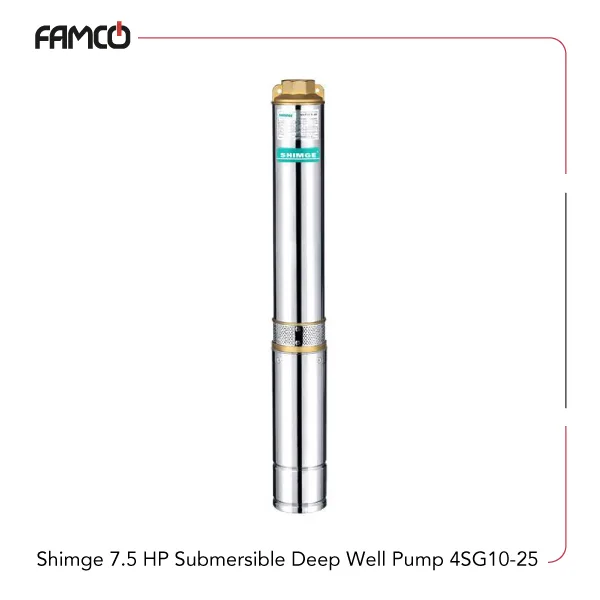

Shimge 7.5 HP Submersible Deep Well Pump 4SG10/25 Specifications
Shimge 7.5 HP submersible deep well pump 4SG10/25 operates on a frequency of 50/60 Hz and is designed with a three-phase power system. It delivers a power output of 5.5 kW, equivalent to 7.5 HP, and requires a rated current of 16 amperes. The maximum head achievable by this device is 124 meters, making it suitable for high-pressure applications. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to about 210 liters per minute, ideal for large-scale water transfer tasks. This Shimge submersible pump functions efficiently in environments with ambient temperatures below 40°C. It is capable of operating in water with minimal sand content, up to 0.01% by mass, and can handle water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Three-phase |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Rated Current (A) | 16 |
| Maximum Head (m) | 124 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Max. ambient temperature | < 40℃ |
| Sand content (in mass fraction) | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
Shimge 7.5 HP Submersible Deep Well Pump 4SG10/25 Applications
- Municipal water supply systems
- Industrial water transfer
- Irrigation and agricultural projects
- Water treatment and circulation
Shimge 7.5 HP Submersible Deep Well Pump 4SG10/25 Benefits
- High flow capacity for large-scale applications
- Reliable performance in various water conditions
- Durable construction for long-term use
- Efficient operation with moderate energy consumption
Shimge 7.5 HP Submersible Deep Well Pump 4SG10/25 Price List
| No. | Name | Price |
| 1 | Shimge 7.5 HP Submersible Deep Well Pump 4SG10/25 Price | Contact us |
