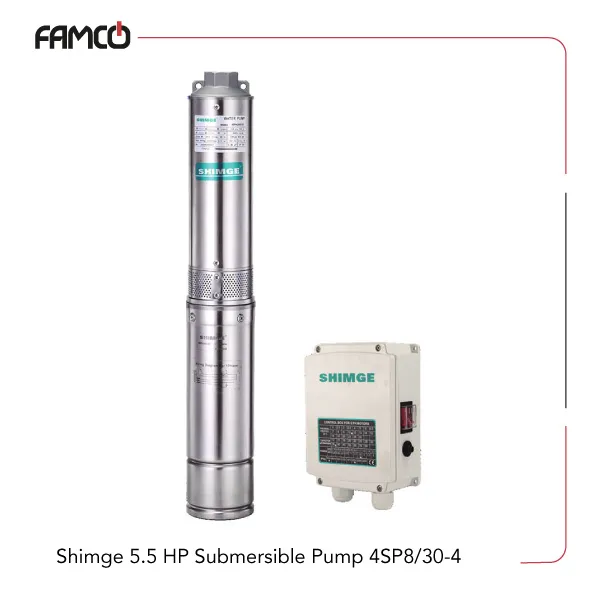

Shimge 5.5 HP Submersible Pump 4SP8/30-4 Specifications
This product is designed to operate efficiently under various environmental conditions. It can withstand ambient temperatures below 40°C and handle water with sand content up to 100 grams per cubic meter. The device is suitable for water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter, making it ideal for diverse water sources. Functioning within a pH range of 6.5 to 8.5, this Shimge submersible pump is compatible with most natural water qualities. The equipment can be installed in boreholes with a diameter of 4 inches and has an immersion depth capacity of up to 70 meters. It operates on a three-phase voltage of 380V, providing flexibility for different power setups. With a power output of 4 kilowatts (equivalent to 5.5 horsepower), it delivers a maximum flow rate of 180 liters per minute. The head range varies from 78 to 178 meters, with a maximum head of 191 meters, making it suitable for various pumping needs in water supply systems.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| three-phase voltage (V) | 380 |
| installation | in 4-inch boreholes |
| power (kW) | 4 |
| power (HP) | 5.5 |
| Max. flow rate (l/min) | 180 |
| head range (m) | 178-78 |
| max. head (m) | 191 |

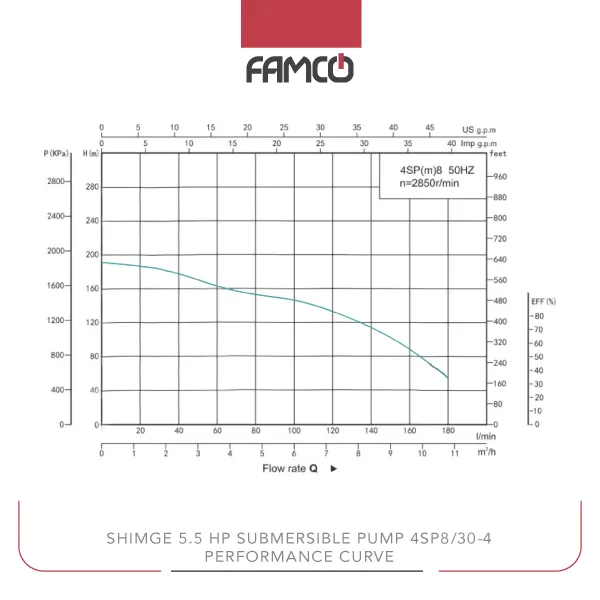

Shimge 5.5 HP Submersible Pump 4SP8/30-4 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 191 | 187 | 178 | 163 | 153 | 147 | 133 | 114 | 89 | 54 |
Shimge 5.5 HP Submersible Pump 4SP8/30-4 Applications
- Groundwater extraction for residential use
- Irrigation in agricultural fields
- Industrial water supply systems
- Water transfer in municipal projects
Shimge 5.5 HP Submersible Pump 4SP8/30-4 Benefits
- High efficiency with a maximum flow rate of 180 l/min
- Suitable for deep well applications up to 70 meters
- Flexible power options for different setups
- Operates reliably in challenging environments
Shimge 5.5 HP Submersible Pump 4SP8/30-4 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Pump 4SP8/30-4 Price | Contact us |
