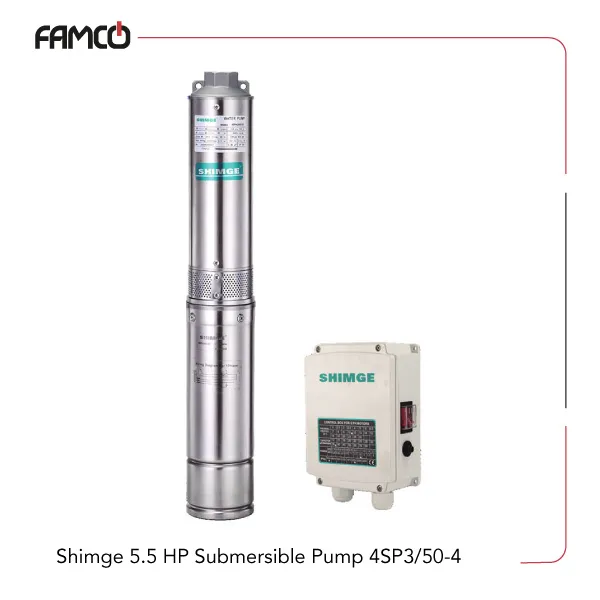

Overview of Shimge 5.5 HP Submersible Pump 4SP3/50-4

This 5.5 HP submersible three-phase pump from Shimge 4SP3 series, is a high-performance water pump suitable for deep well applications (up to 70 meters). It is built to handle challenging water conditions, including a max. of 100g/m³ sand conetent and some chemical content (per below table). Its one of a kind design is what allows it to operate efficiently with flow rates of up to 80 l/min with heads reaching around 350 meters. The pump is powered by a 380V system, ensuring stable operation. It is ideal for industrial, agricultural, or municipal water supply systems. Its high flow rate and head capacity make it versatile for different water delivery needs. Easy to install in 4-inch boreholes, this pump offers reliable and consistent performance in demanding environments.

Shimge 5.5 HP Submersible Pump 4SP3/50-4 Specifications

The 4SP3/50-4 Shimge is designed to operate efficiently under a variety of environmental conditions. It can withstand ambient temperatures below 40°C and is suitable for installations where sand content does not exceed 100 grams per cubic meter. The device is capable of handling water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. It functions optimally within a pH range of 6.5 to 8.5, ensuring compatibility with most water sources. The equipment presented here from the well-known line of Shimge submersible pumps can be submerged up to 70 meters deep, making it ideal for deep well applications. It operates on a three-phase power supply of 380 volts and is designed for installation in 4-inch boreholes. With a power output of 4 kilowatts (or 5.5 horsepower), it delivers a maximum flow rate of 80 liters per minute. The head range varies from 360 to 206 meters, with a maximum head capacity of 369 meters, providing reliable water pressure for various needs.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH range	6.5 to 8.5
Max. immersion depth	70 meters
Three-phase voltage	380V
Installation	in 4-inch boreholes
Power	4 kW
Power (HP)	5.5 HP
Max. flow rate	80 liters per minute
Head range	360-206 meters
Max. head	369 meters

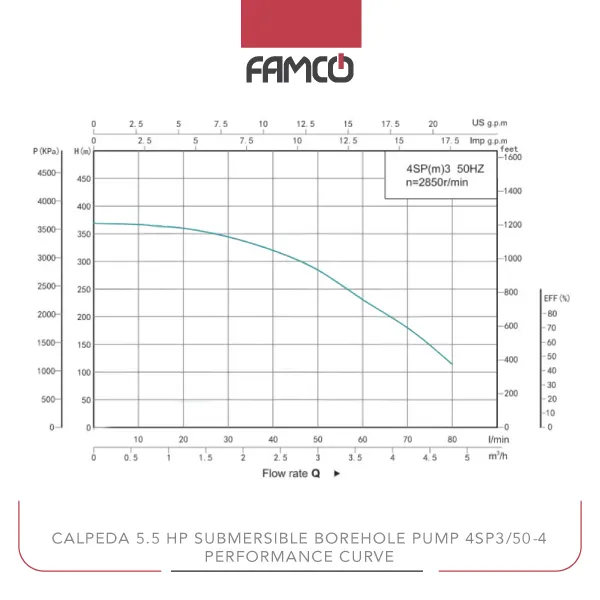

Shimge 5.5 HP Submersible Pump 4SP3/50-4 Performance Data

m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
head (m)	369	367	360	344	320	284	231	180	114

Shimge 5.5 HP Submersible Pump 4SP3/50-4 Applications

Deep well water extraction for municipal use
Irrigation systems in agriculture
Industrial water supply solutions
Water treatment plants

Shimge 5.5 HP Submersible Pump 4SP3/50-4 Benefits

Handles high sand and chemical content efficiently
Operates reliably at significant depths
High flow rate for quick water delivery
Suitable for various water quality conditions

Shimge 5.5 HP Submersible Pump 4SP3/50-4 Price List

No.	Name	Price
1	Shimge 5.5 HP Submersible Pump 4SP3/50-4 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Industrial water transfer, Water Transfer and Supply
Power (kW)	4
Power (HP)	5.5
Maximum Flow Rate (L/min)	80
Maximum Delivery Head (m)	369
