Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Specifications
This product features a power output of 4 kW (5.5 HP), suitable for various industrial and water pumping applications. It operates efficiently in environments with ambient temperatures below 40°C. Like most professional submersible pumps, it must handle water with contaminants such as sand; so it tolerates sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters for deep water extraction. It requires a three-phase power supply of 380V for operation. The pump can deliver a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour. Its maximum delivery head ranges from 54 to 191 meters, which provides strong water pressure for various needs.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 54-191 |

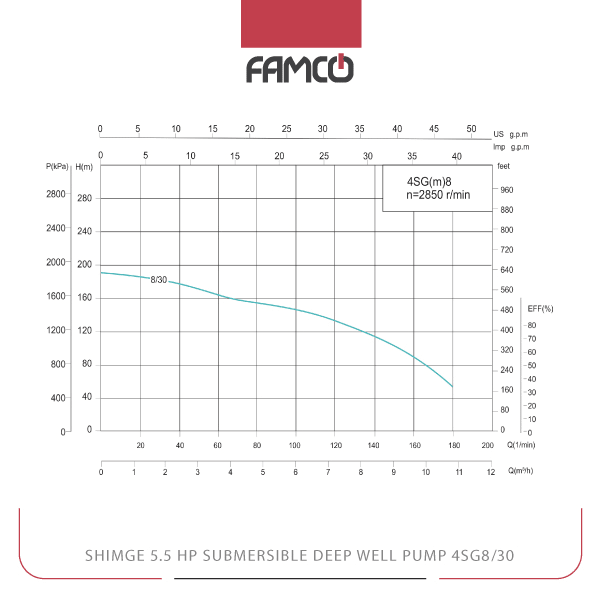

Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 191 | 187 | 178 | 163 | 153 | 147 | 133 | 114 | 89 | 54 |
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Applications
- Deep well water extraction
- Municipal water supply systems
- Irrigation in agriculture
- Industrial water processing
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Benefits
- High efficiency with 4 kW power output
- Suitable for deep water applications up to 70 meters
- Handles water with minimal sand and contaminants
- Provides strong water flow and pressure
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Deep Well Pump 4SG8/30 Price | Contact us |
