Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Specifications
This product features a powerful 4 kW (5.5 HP) motor designed for efficient water pumping. It operates under a maximum ambient temperature of less than 40°C, making it suitable for various outdoor environments. The 4SG8/27 is famous for passing liquids through with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so different water qualities are handled with ease. The pump’s capacity to deliver up to 180 liters per minute and generate significant head pressure is noteworthy. Like other professional submersible pumps, this one’s maximum immersion depth is 70 meters, which allows for deep water extraction. It requires a three-phase power supply of 380V for operation.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 49-172 |

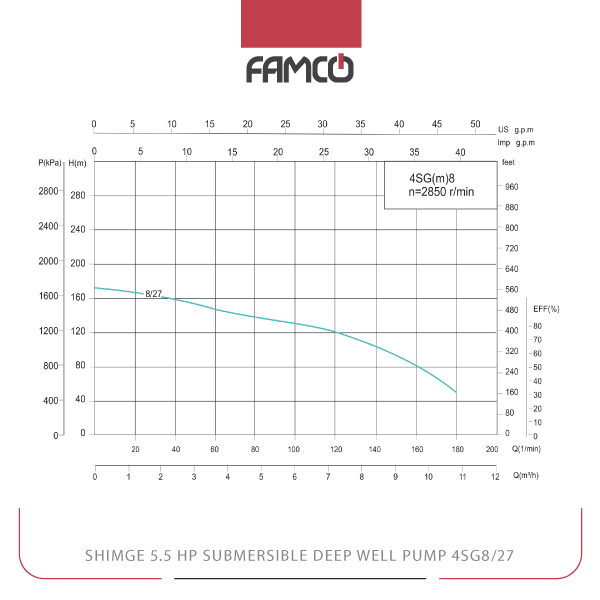

Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 172 | 168 | 160 | 147 | 138 | 132 | 120 | 103 | 80 | 49 |
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Applications
- Irrigation systems for agriculture
- Water supply for residential or industrial use
- Deep well water extraction
- Water transfer in construction sites
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Benefits
- High efficiency with a powerful 4 kW motor
- Suitable for deep water pumping up to 70 meters
- Handles water with impurities like sand and hydrogen sulfide
- Flexible operation with high flow rate and adjustable head
Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Deep Well Pump 4SG8/27 Price | Contact us |
