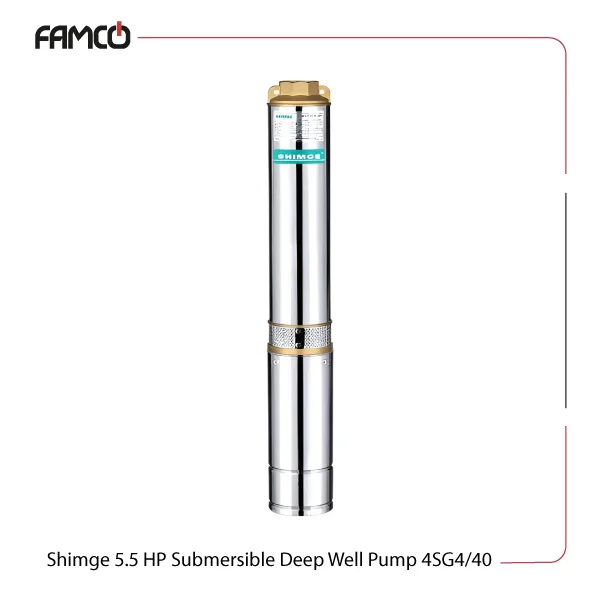

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40

4 kW (5.5 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40

This 5.5 HP pump has made deep well water extraction easy. The 4SG4/40 is a three-phase product from Shimge that operates using different water qualities, whether contaminated with sand or other chemical contents (to a degree). Easy to install in 4-inch boreholes, it provides an efficient and lasting solution.

Related Products

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Specifications

This product features a power output of 4 kW (5.5 HP), suitable for various demanding applications. It operates efficiently in environments with ambient temperatures below 40°C. This Shimge pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5 to maximize compatibility with different water qualities. The maximum immersion depth is 70 meters, and it requires a three-phase power supply of 380V. This collection of submersible pumps can deliver a maximum flow rate of 100 liters per minute, equivalent to 6 cubic meters per hour. Its maximum delivery head ranges from 63 to 275 meters with strong water pressure. Designed for placement in 4-inch boreholes, this pump is suitable for various water extraction and irrigation projects.

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40

Specification Value
Power (kW) 4
Power (HP) 5.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 63-275
Placement in 4-inch boreholes

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 297 286 278 270 258 240 216 186 151 109 63

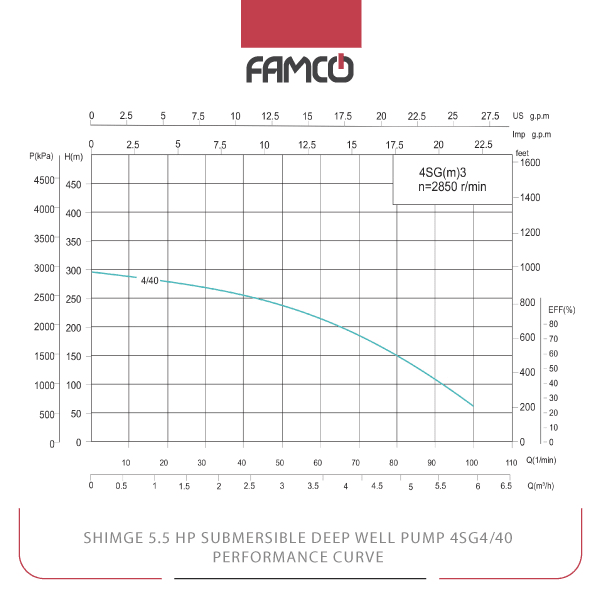

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Performance Curve

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Applications

  • Deep well water extraction
  • Irrigation systems for agriculture
  • Municipal water supply projects
  • Industrial water pumping



Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Benefits

  • High efficiency with 4 kW power output
  • Suitable for deep borehole installation up to 70 meters
  • Handles water with moderate chemical content
  • Provides strong water flow and pressure



Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Price List

No. Name Price
1 Shimge 5.5 HP Submersible Deep Well Pump 4SG4/40 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
