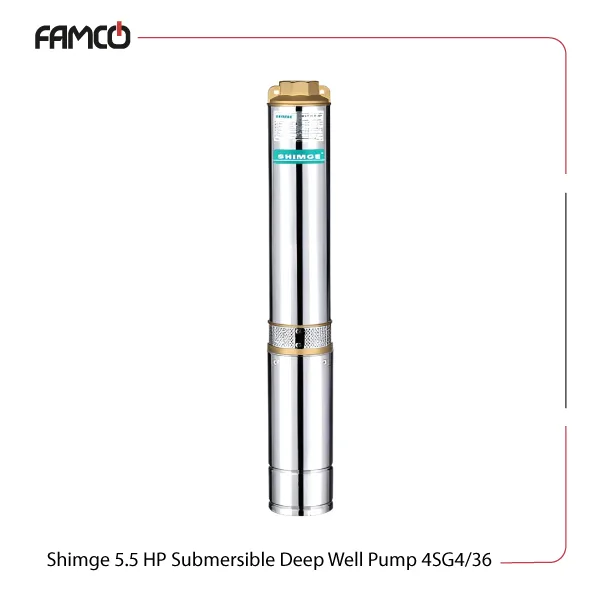

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36

3 kW (4 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36

A 5.5 HP output has enabled the 4SG4/36 to reach heights of up to 267 meters. The pump can operate in environments with moderate temperatures. Water with minimal sand and some other chemical contents is also allowed in this three-phase pump. This Shimge water pump’s impressive flow rate and 57 to 267-meter head height make it versatile.

Related Products

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36 Specifications

This product has a 4 kW motor that operates at ambient temperatures below 40°C. The permitted sand content is up to 0.01% in this model. To further enhance its applicability, this submersible pump can handle hydrogen sulfide levels up to 1.5 mg/L and chloride ion concentrations up to 400 mg/L. It functions effectively within a pH range of 6.5 to 8.5. The 4SG4/36 pump can be submerged to 70 meters deep. This three-phase pumping arrangement is powered by a 380V. It offers a maximum flow rate of 100 liters per minute, equivalent to 6 cubic meters per hour, and can deliver water at a head height ranging from 57 to 267 meters.

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36

Specification Value
Power (kW) 4
Power (HP) 5.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 57-267

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 267 257 250 243 232 216 194 167 136 98 57

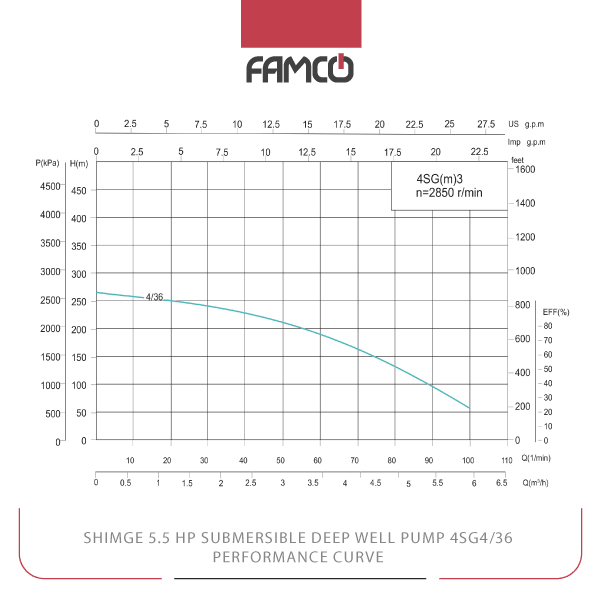

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36 Performance Curve

Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36 Applications

  • Industrial water transfer
  • Agricultural irrigation systems
  • Municipal water supply projects
  • Flood control and drainage



Shimge 5.5 HP Submersible Deep Well Pump 4SG4/36 Benefits

  • High efficiency with powerful motor
  • Suitable for various water qualities
  • Flexible installation with high immersion depth
  • Reliable performance in demanding environments
