Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Specifications
This product features a power output of 4 kW (5.5 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with minimal sand content, up to 0.01%, and hydrogen sulfide levels up to 1.5 mg/L. It is compatible with chloride ion concentrations up to 400 mg/L and functions within a pH range of 6.5 to 8.5. The device can be submerged up to 70 meters deep, making it ideal for deep well applications.
It supports three-phase (380V) power supplies, so users find this submersible pump easy to integrate into their present setups. The maximum flow rate is 80 liters per minute, or 4.8 cubic meters per hour, with a delivery head ranging from 114 to 369 meters, ensuring strong water pressure for various uses.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 114-369 |

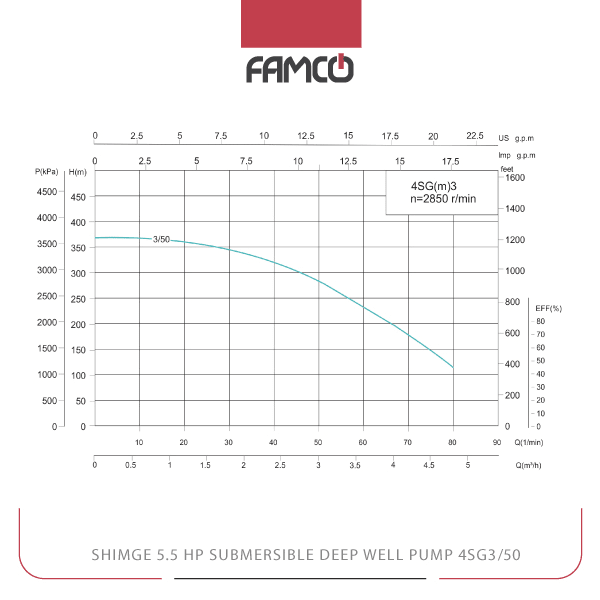

Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 369 | 367 | 360 | 344 | 320 | 284 | 231 | 180 | 114 |
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Applications
- Deep well water extraction
- Irrigation systems for agriculture
- Municipal water supply
- Industrial fluid transfer
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Benefits
- High efficiency with 4 kW power output
- Suitable for deep water applications up to 70 meters
- Flexible power options with single and three-phase support
- Handles water with specific quality parameters, including low sand and sulfide levels
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Deep Well Pump 4SG3/50 Price | Contact us |
