Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Specifications
This product features a powerful 4 kW (5.5 HP) motor that serves in commercial or heavy-duty applications just fine. It operates under a maximum ambient temperature of less than 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L, with seamless performance in challenging water conditions. This pump is well-suited to pass on liquids with a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters to serve for deep water extractions. As a submersible pump, it fits in 4 inch boreholes with ease. It runs on a three-phase voltage of 380V, which provides stable power for continuous operation even when submerged. The pump’s maximum flow rate is 80 liters per minute, or 4.8 cubic meters per hour. The maximum delivery head ranges from 107 to 332 meters.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 107-332 |

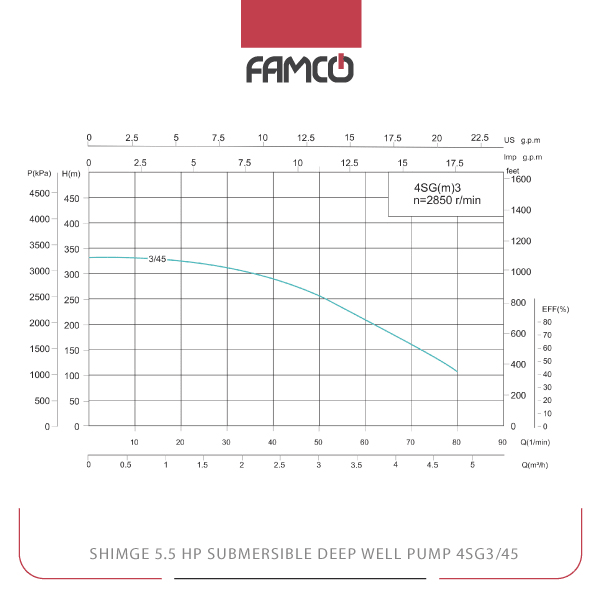

Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 332 | 330 | 324 | 310 | 288 | 256 | 208 | 162 | 107 |
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Applications
- Irrigation systems for agriculture
- Industrial water transfer
- Municipal water supply
- Deep well water extraction
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Benefits
- High efficiency with a powerful 4 kW motor
- Suitable for deep water sources up to 70 meters
- Operates reliably in challenging water conditions
- Flexible flow rate and high-pressure delivery
Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Deep Well Pump 4SG3/45 Price | Contact us |
There are no reviews yet.
