Shimge 4 HP Submersible Pump 4SP8/24-3

3 kW (4 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

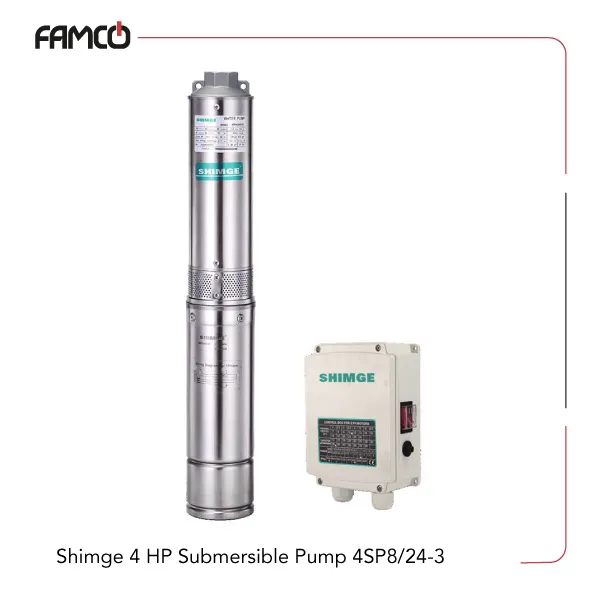

Overview of Shimge 4 HP Submersible Pump 4SP8/24-3

The 4SP8/24-3 is a 4 HP is built to operate reliably in challenging conditions, including 100g/m³ high sand and chemical content. The pump is suitable for industrial, agricultural, and municipal water supply systems. This three-phase Shimge 4sp8/24-3 has its construction made of lasting components. Easy to install in 4-inch boreholes, it can handle significant depths and flow rates, making it versatile for different water extraction needs. The device is ideal for areas with specific water quality parameters, such as moderate hydrogen sulfide and chloride levels, and can withstand environmental temperatures up to 40°C. Overall, this pump offers a reliable solution for large-scale water pumping projects, combining durability, efficiency, and adaptability.

Shimge 4 HP Submersible Pump 4SP8/24-3 Specifications

This product operates efficiently within a maximum ambient temperature of 40°C and can handle water with sand content up to 100 grams per cubic meter. It is suitable for environments with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. The device functions optimally within a pH range of 6.5 to 8.5, ensuring compatibility with most natural water sources. It can be installed at depths up to 70 meters in 4-inch boreholes, making it ideal for deep well applications. Powered by a three-phase 380-volt system, it delivers a power output of 3 kilowatts (equivalent to 4 horsepower). The Shimge submersible pump can achieve a maximum flow rate of 180 liters per minute, with a head range from 64 to 142 meters, and a maximum head of 153 meters, suitable for various water lifting needs.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	3
power (HP)	4
Max. flow rate (l/min)	180
head range (m)	142-64
max. head (m)	153

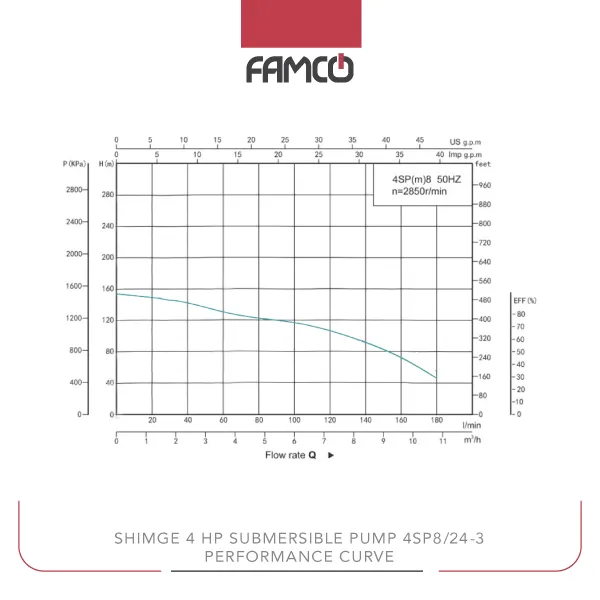

Shimge 4 HP Submersible Pump 4SP8/24-3 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	153	149	142	130	122	117	106	91	72	46

Shimge 4 HP Submersible Pump 4SP8/24-3 Applications

Deep well water extraction for municipal supply
Agricultural irrigation systems
Industrial water processing plants
Municipal and community water projects

Shimge 4 HP Submersible Pump 4SP8/24-3 Benefits

High efficiency at various flow rates and depths
Durable construction for tough environments
Suitable for water with sand and chemical content
Easy installation in standard boreholes

Shimge 4 HP Submersible Pump 4SP8/24-3 Price List

No.	Name	Price
1	Shimge 4 HP Submersible Pump 4SP8/24-3 Price	Contact us

Brand	Shimge
Applications	Boosting Water Pressure in Plumbing Systems, Deep well water extraction, Municipal water supply
Power (kW)	3
Power (HP)	4
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	153
