Shimge 4 HP Submersible Pump 4SP3/40-3 Specifications
This product operates efficiently in environments with a maximum ambient temperature of less than 40°C. It can handle water with sand content up to 100 grams per cubic meter and hydrogen sulfide levels up to 1.5 milligrams per liter. The Shimge submersible pump is suitable for water with chloride ion concentrations up to 400 milligrams per liter and functions within a pH range of 6.5 to 8.5. It is designed for installation in boreholes with a diameter of 4 inches and can be submerged up to 70 meters deep. Powered by a three-phase voltage of 380 volts, it consumes 3 kilowatts of power, equivalent to 4 horsepower. The pump from Shimge can deliver a maximum flow rate of 80 liters per minute, with a head range between 165 and 289 meters, reaching a maximum head of 297 meters, making it suitable for various water lifting applications.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
| Max. immersion depth | 70 meters |
| Three-phase voltage | 380V |
| Installation | in 4-inch boreholes |
| Power | 3 kW |
| Power (HP) | 4 HP |
| Max. flow rate | 80 liters per minute |
| Head range | 289-165 meters |
| Max. head | 297 meters |

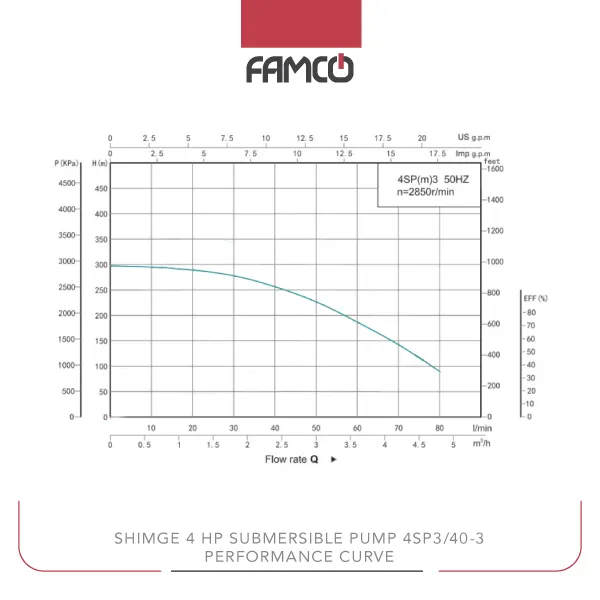

Shimge 4 HP Submersible Pump 4SP3/40-3 Performance Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| head (m) | 297 | 295 | 289 | 278 | 256 | 226 | 186 | 142 | 89 |
Shimge 4 HP Submersible Pump 4SP3/40-3 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water processing
Shimge 4 HP Submersible Pump 4SP3/40-3 Benefits
- High efficiency at deep depths
- Durable construction for tough water conditions
- Flexible installation in boreholes
- Reliable performance with stable flow rates
Shimge 4 HP Submersible Pump 4SP3/40-3 Price List
| No. | Name | Price |
| 1 | Shimge 4 HP Submersible Pump 4SP3/40-3 Price | Contact us |
