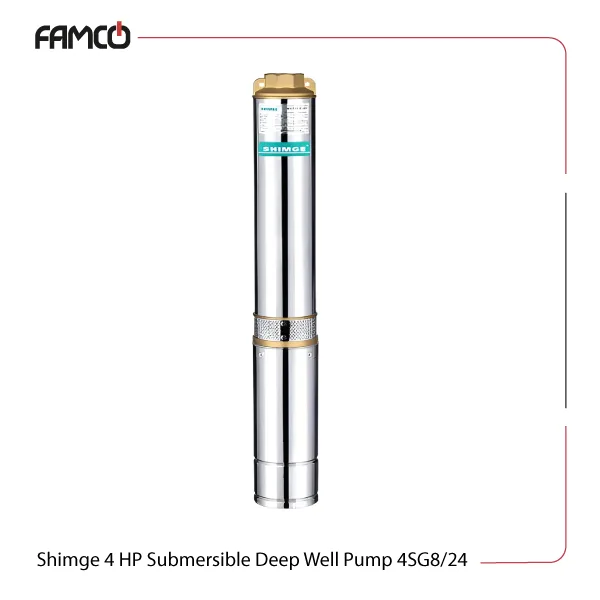

Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Specifications
This product features a power output of 3 kW (4 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. The maximum immersion depth is 70 meters, making this submersible pump a sure choice when it comes to deep well applications. It supports standard three-phase (380V) power supplies. The pump’s maximum flow rate is 180 liters per minute or 10.8 cubic meters per hour, with a delivery head ranging from 46 to 153 meters, suitable for various lifting and distribution tasks.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 46-153 |

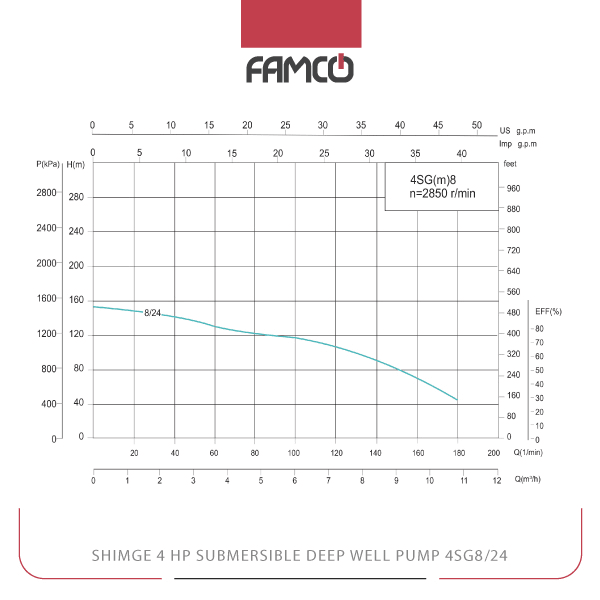

Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 153 | 149 | 142 | 130 | 122 | 117 | 106 | 91 | 72 | 46 |
Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Applications
- Deep well water extraction
- Irrigation systems for agriculture
- Industrial water supply
- Municipal water distribution
Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Benefits
- High efficiency with 3 kW power output
- Suitable for deep immersion up to 70 meters
- Flexible power options with single and three-phase support
- Handles water with specific chemical and sand content
Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Price List
| No. | Name | Price |
| 1 | Shimge 4 HP Submersible Deep Well Pump 4SG8/24 Price | Contact us |
