Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Specifications
With a 3 kW motor, the 4SG8/21 offers high efficiency and performance. Its ability to operate in environments with specific water qualities, such as low sand and hydrogen sulfide content, makes it suitable for diverse water sources. It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with minimal sand content, up to 0.01%, and hydrogen sulfide levels up to 1.5 mg/L. It is compatible with chloride ion concentrations up to 400 mg/L to help maintain stability in saline or corrosive water sources. The pH range of 6.5 to 8.5 allows it to work effectively across different water qualities. With a maximum immersion depth of 70 meters, this collection of submersible pumps is suitable for deep water applications. The device operates on a three-phase voltage of 380V to provide a consistent power supply. It can deliver a maximum flow rate of 180 liters per minute, or 10.8 cubic meters per hour, which transfers a high volume of water. The maximum delivery head ranges anywhere from 40 to 134 meters, so different installation and operation settings offer synchronized performance using this pump.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 40-134 |

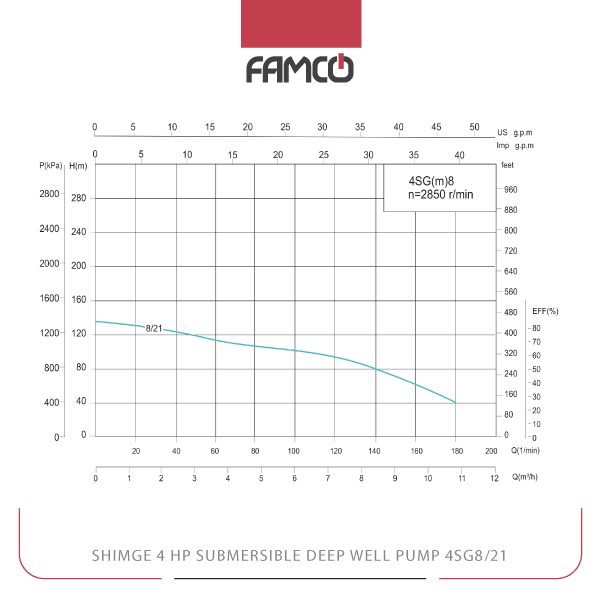

Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 134 | 130 | 124 | 114 | 107 | 102 | 93 | 80 | 63 | 40 |
Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Applications
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
- Deep well water extraction
Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Benefits
- High efficiency with 3 kW power output
- Suitable for deep water applications up to 70 meters
- Handles water with minimal sand and contaminants
- Flexible operation with adjustable head and high flow capacity
Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Price List
| No. | Name | Price |
| 1 | Shimge 4 HP Submersible Deep Well Pump 4SG8/21 Price | Contact us |
