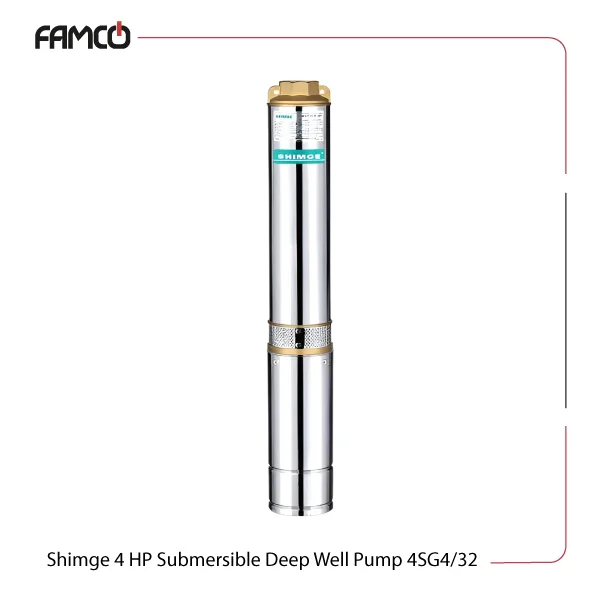

Shimge 4 HP Submersible Deep Well Pump 4SG4/32

3 kW (4 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 4 HP Submersible Deep Well Pump 4SG4/32

With a 3 kW motor, this three-phase Shimge pump offers strong performance. Its delivery head is 51 to 239 meters, and it achieves a top flow rate of 100 l/min. Tailored for deep water applications, the 4SG4/32 has a maximum immersion depth of 70 meters. The pump can handle water with some impurities, such as hydrogen sulfide, sand, and chloride ions.

Related Products

Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Specifications

This product features a power of 3 kW (equivalent to 4 HP), suitable for various industrial and water management applications. To get the best performance, it must operate in environments with temperatures below 40°C. This pumping system can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5. This Shimge pump’s maximum 70-meter immersion depth enables it to reach the deepest boreholes. All it takes is a 4-inch borehole to install this submersible pump. It requires a three-phase power supply of 380V. The pump can deliver a maximum flow rate of 100 liters per minute, which translates to 6 cubic meters per hour. The maximum delivery head ranges from 51 to 239 meters, providing strong pressure for various tasks. Overall, this product is designed for durability and high performance in demanding conditions, making it suitable for water supply, irrigation, and industrial processes.

Shimge 4 HP Submersible Deep Well Pump 4SG4/32

Specification Value
Power (kW) 3
Power (HP) 4
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 51-239

Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 239 232 224 217 208 194 174 149 121 88 51

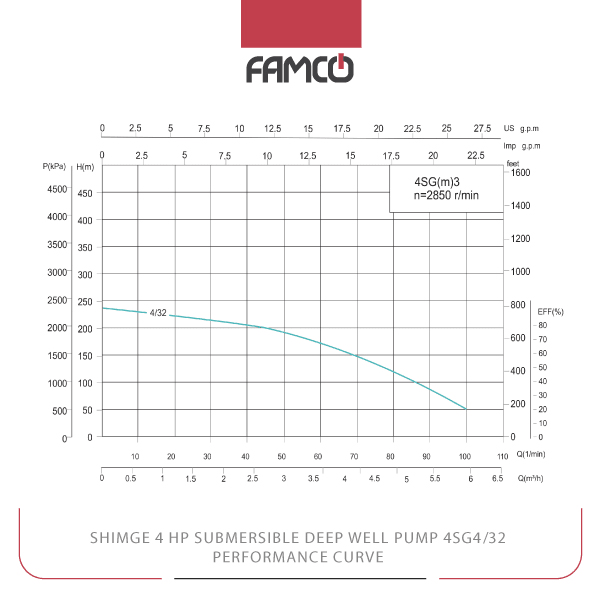

Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Performance Curve

Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Applications

  • Water supply systems
  • Irrigation in agriculture
  • Industrial water transfer
  • Municipal water management



Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Benefits

  • High efficiency with 3 kW power
  • Suitable for deep water applications up to 70 meters
  • Handles water with impurities like sand and hydrogen sulfide
  • Provides strong flow and pressure for various needs



Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Price List

No. Name Price
1 Shimge 4 HP Submersible Deep Well Pump 4SG4/32 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (L/min)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
