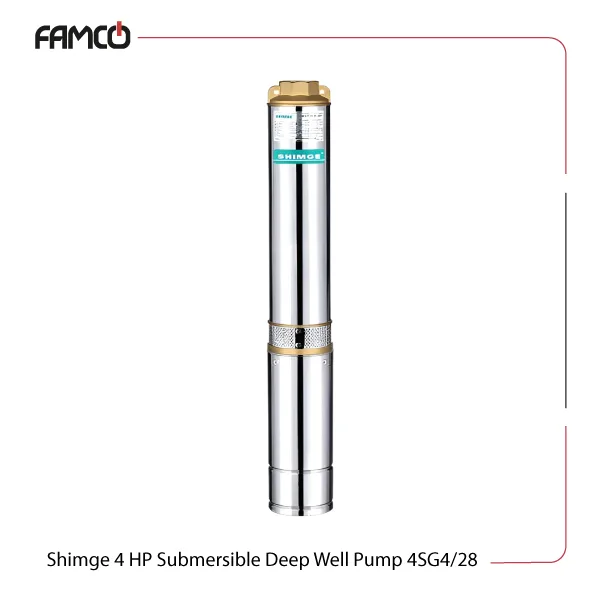

Shimge 4 HP Submersible Deep Well Pump 4SG4/28

3 kW (4 HP)

Single-or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 4 HP Submersible Deep Well Pump 4SG4/28

Powerful and versatile, this Shigme product is designed with a 4 HP output. Built for deep well water extraction, irrigation, and industrial water transfer, it serves different applications. The 4SG4/28 has a 100 l/min flow rate with strong pressure. The pump can operate in temperatures below 40°C and handle water with some impurities like sand and hydrogen sulfide. Its head delivery ranges from 45 to 209 meters, depending on the flow rate. This Shimge pumping product is single and three-phase-friendly, with 220 and 380 voltages, respectively. Whether for agricultural, industrial, or municipal use, this pump offers reliable performance and durability. This model is provided in both single- or three-phase versions.

Shimge 4 HP Submersible Deep Well Pump 4SGm4/28 (single-phase)

Shimge 4 HP Submersible Deep Well Pump 4SG4/28 (three-phase)

Related Products

Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Specifications

This product features a power output of 3 kW, equivalent to 4 HP. Serving in critical environments, it operates efficiently in ambient temperatures below 40°C. This deep well pump can handle water with sand content (up to 0.01%), hydrogen sulfide levels (up to 1.5 mg/L), and chloride ion concentrations (up to 400 mg/L). It maintains optimal performance within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters. It supports both single-phase voltage of 220V and three-phase voltage of 380V, providing flexibility for different power setups. The maximum flow rate in the 4SG4/28 Shimge submersible pump is 100 liters per minute, or 6 cubic meters per hour for high-volume water transfer. Extending its range of operation, the maximum delivery head is set anywhere from 45 to 209 meters with strong water pressure.

Shimge 4 HP Submersible Deep Well Pump 4SG4/28

Specification Value
Power (kW) 3
Power (HP) 4
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 45-209

Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 209 203 196 190 182 170 152 130 106 77 45

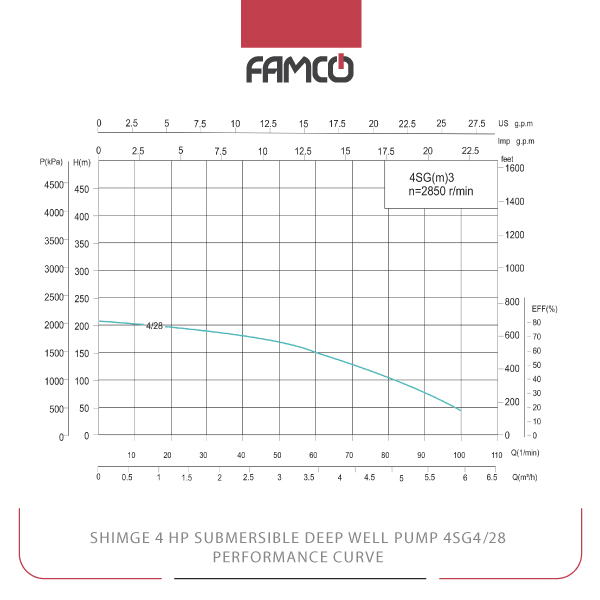

Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Performance Curve

Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Applications

  • Deep well water extraction
  • Irrigation systems
  • Industrial water transfer
  • Municipal water supply



Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Benefits

  • High flow rate and strong pressure
  • Flexible voltage options
  • Suitable for deep water sources
  • Handles water with impurities



Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Price List

No. Name Price
1 Shimge 4 HP Submersible Deep Well Pump 4SG4/28 Price Contact us
