Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Specifications
This product features a power output of 3 kW (4 HP), suitable for various industrial applications. It operates efficiently in environments with ambient temperatures below 40°C. This Shimge pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It maintains optimal performance within a pH range of 6.5 to 8.5. The product’s maximum immersion depth is 70 meters. It requires a three-phase power supply of 380V. The maximum flow rate in this submersible pump is 80 liters per minute, equivalent to 4.8 cubic meters per hour. The delivery head can vary from 89 to 297 meters to support different setups.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 89-297 |

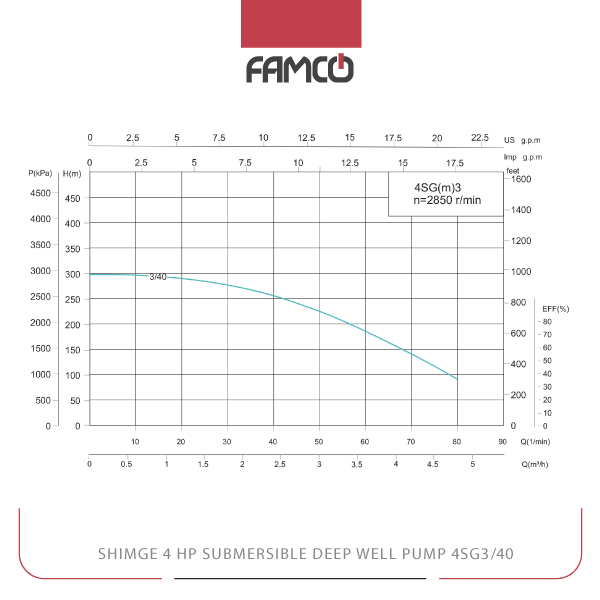

Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 297 | 295 | 289 | 278 | 256 | 226 | 186 | 142 | 89 |
Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Applications
- Deep well water extraction
- Industrial water transfer
- Water treatment plants
- Municipal water supply systems
Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Benefits
- High efficiency with 3 kW power output
- Suitable for deep immersion up to 70 meters
- Handles water with impurities like sand and hydrogen sulfide
- Adjustable delivery head for versatile use
Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Price List
| No. | Name | Price |
| 1 | Shimge 4 HP Submersible Deep Well Pump 4SG3/40 Price | Contact us |
