Shimge 3 HP Submersible Pump 4SP8/18-2.2

2.2 kW (3 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

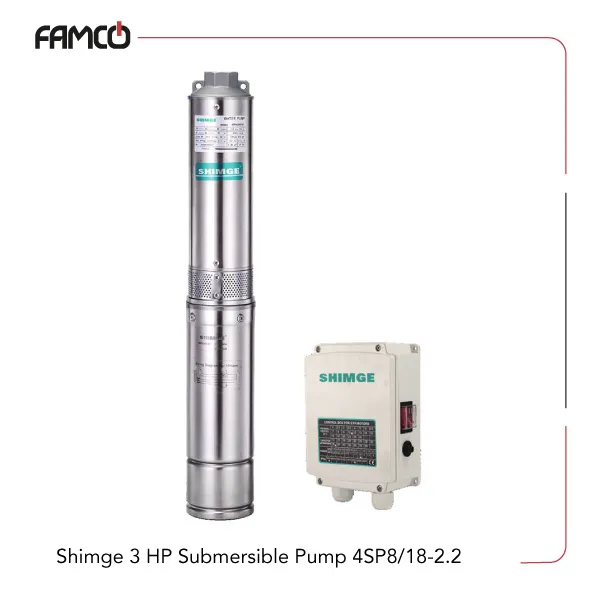

Overview of Shimge 3 HP Submersible Pump 4SP8/18-2.2

This Shimge pump from the 4SP8 series, 18-22 model, delivers heads of around 118 meters with max. 180 l/min flows. It is ideal for applications like water supply, irrigation, and industrial processes. Its robust construction allows it to operate under challenging conditions, including moderate sand and chemical content. The pump’s versatile voltage options make it adaptable to different power sources. With a high flow rate and significant head capacity, it efficiently moves water over long distances or to elevated locations. Its installation in boreholes ensures a secure and stable setup, suitable for both residential and commercial use. Overall, this product offers a durable and efficient solution for water pumping needs across multiple sectors. This Shimge pump is available in two modes:

Shimge 3 HP Submersible Pump 4SPm8/18-2.2 (single-phase)

Shimge 3 HP Submersible Pump 4SP8/18-2.2 (three-phase)

Shimge 3 HP Submersible Pump 4SP8/18-2.2 Specifications

This product operates efficiently in environments with temperatures below 40°C and can handle sand content up to 100 grams per cubic meter. It is suitable for water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter. The device functions within a pH range of 6.5 to 8.5, ensuring compatibility with various water qualities. You can install this Shimge submersible pump at depths up to 70 meters in 4-inch boreholes. The power supply options include 220V single-phase and 380V three-phase, providing flexibility for different setups. With a power output of 2.2 kilowatts (3 HP), it delivers a maximum flow rate of 180 liters per minute. The head range varies from 48 to 106 meters, with a maximum head capacity of 118 meters, making it suitable for diverse pumping needs in water supply systems.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	2.2
power (HP)	3
Max. flow rate (l/min)	180
head range (m)	106-48
max. head (m)	118

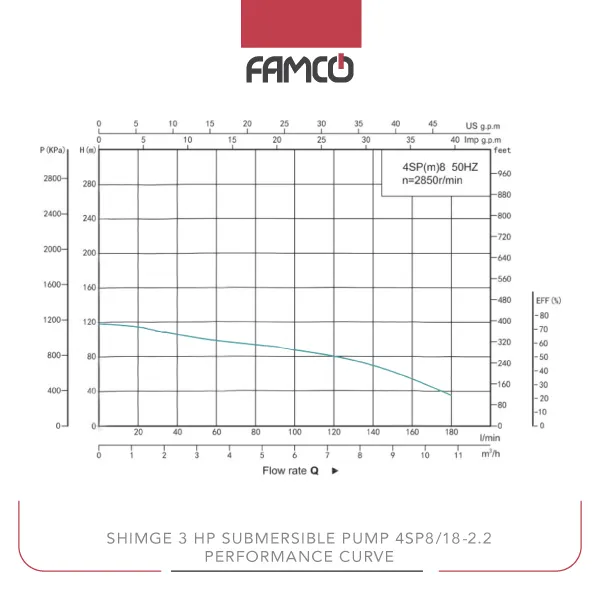

Shimge 3 HP Submersible Pump 4SP8/18-2.2 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	118	114	106	98	94	88	80	70	54	35

Shimge 3 HP Submersible Pump 4SP8/18-2.2 Applications

Water supply systems in residential and commercial buildings
Irrigation for agricultural fields
Industrial water transfer and processing
Deep well water extraction

Shimge 3 HP Submersible Pump 4SP8/18-2.2 Benefits

High flow rate for efficient water movement
Flexible voltage options for easy installation
Durable construction for challenging environments
Suitable for deep borehole installation up to 70 meters

Shimge 3 HP Submersible Pump 4SP8/18-2.2 Price List

No.	Name	Price
1	Shimge 3 HP Submersible Pump 4SP8/18-2.2 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Municipal water supply, Water Supply Connections
Power (kW)	2.2
Power (HP)	3
Maximum Delivery Head (m)	118
Maximum Flow Rate (L/min)	180
