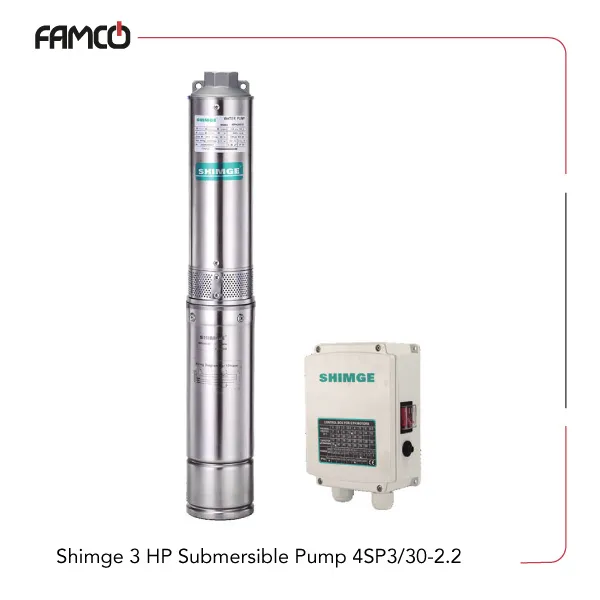

Shimge 3 HP Submersible Pump 4SP3/30-2.2

2.2 kW (3 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 3 HP Submersible Pump 4SP3/30-2.2

The 4SP3/30-2.2 is a pumping solution you can use to transfer liquids to heights of around 200 meters with flow rates of up to 80 l/min. It is suitable for environments with moderate temperatures and water containing sand, hydrogen sulfide, and chlorides. Its robust construction allows installation in boreholes up to 70 meters deep. The pump supports both single-phase and three-phase power supplies, making it versatile for various setups. It is widely used in water supply systems, irrigation, and industrial processes where reliable water movement is essential. Its impressive head capacity and flow rate ensure efficient operation in demanding conditions, providing a steady water flow for different needs. You can get this pump operating in two modes:

Shimge 3 HP Submersible Pump 4SPm3/30-2.2 (Single-phase)

Shimge 3 HP Submersible Pump 4SP3/30-2.2 (Tree-phase)

Shimge 3 HP Submersible Pump 4SP3/30-2.2 Specifications

This product operates efficiently within an ambient temperature below 40°C and can handle water with sand content up to 100 grams per cubic meter. It is designed to withstand hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. The device functions optimally within a pH range of 6.5 to 8.5, ensuring compatibility with various water qualities. It can be installed at depths up to 70 meters in 4-inch boreholes, making it suitable for deep well applications. The Shimge submersible pump is an equipment that supports both single-phase voltage of 220V and three-phase voltage of 380V, providing flexible power options. It consumes 2.2 kilowatts (or 3 horsepower) and can deliver a maximum flow rate of 80 liters per minute. The head range varies from 127 meters to 219 meters, with a maximum head capacity of 225 meters, making it ideal for high-pressure water transfer and boosting tasks in different settings.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	2.2
power (HP)	3
Max. flow rate (l/min)	80
head range (m)	219-127
max. head (m)	225

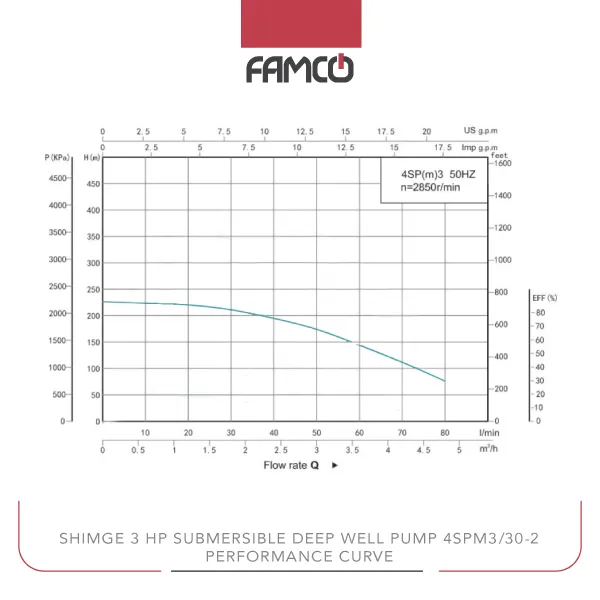

Shimge 3 HP Submersible Pump 4SP3/30-2.2 Performance Data

m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
head (m)	225	223	219	210	194	173	143	111	75

Shimge 3 HP Submersible Pump 4SP3/30-2.2 Applications

Deep well water extraction
Irrigation systems
Industrial water supply
Municipal water distribution

Shimge 3 HP Submersible Pump 4SP3/30-2.2 Benefits

High efficiency at various depths
Flexible power options (single-phase and three-phase)
Handles water with sand, sulfides, and chlorides
Supports high flow rates and pressure

Shimge 3 HP Submersible Pump 4SP3/30-2.2 Price List

No.	Name	Price
1	Shimge 3 HP Submersible Pump 4SP3/30-2.2 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Garden irrigation, Municipal water supply
Power (kW)	2.2
Power (HP)	3
Maximum Flow Rate (L/min)	80
Maximum Delivery Head (m)	225
