Shimge 3 HP Submersible Deep Well Pump 4SG8/18

2.2 kW (3 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 3 HP Submersible Deep Well Pump 4SG8/18

Powerful and efficient, the 4SG8/18 has a 70-meter immersion depth. With a 2.2 kW motor, it delivers 180 l/min flow rates for industrial, agricultural, and municipal water systems. Its ability to operate in environments with specific water quality parameters, such as low 0.01 percent sand and 1.5 mg/Lhydrogen sulfide content, is considerable. The pump supports different voltage options (single or three-phase), making it adaptable to various power sources. Overall, this pump combines performance, flexibility, and durability, making it a versatile choice for many water management needs. This model is provided in both single- or three-phase versions.

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 (single-phase)

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 (three-phase)

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Specifications

This product features a power of 2.2 kW (or 3 HP), suitable for various demanding applications. It operates efficiently in environments with temperatures below 40°C. The 4SG8/18 can maintain optimal performance within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters, so it serves in deep water applications. It also supports both single-phase voltage of 220V and three-phase voltage of 380V, providing flexibility for different power setups. The maximum flow rate of submersible pumps shows their performance level, and this one delivers 180 liters per minute, equivalent to 10.8 cubic meters per hour. The delivery head ranges from 35 to 118 meters.

Shimge 3 HP Submersible Deep Well Pump 4SG8/18

Specification	Value
Power (kW)	2.2
Power (HP)	3
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	35-118

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	118	114	106	98	94	88	80	70	54	35

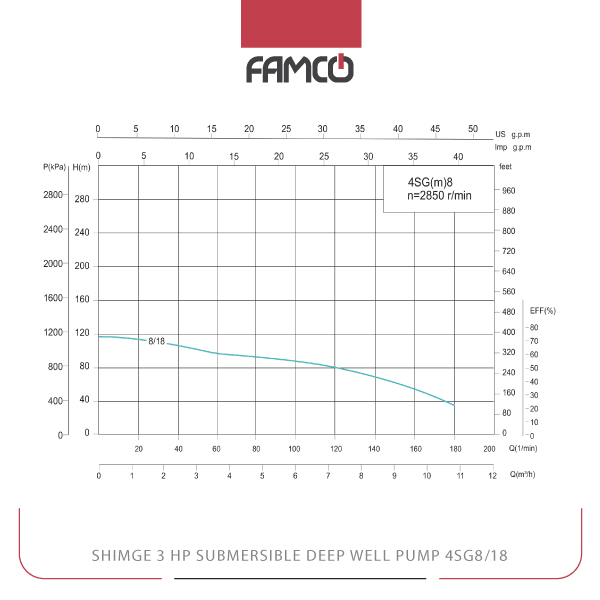

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Performance Curve

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Applications

Deep well water extraction
Irrigation systems in agriculture
Municipal water supply
Industrial water transfer

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Benefits

High flow rate and strong pressure
Flexible voltage options for different setups
Durable in various water qualities
Suitable for deep water applications

Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Price List

No.	Name	Price
1	Shimge 3 HP Submersible Deep Well Pump 4SG8/18 Price	Contact us

Brand	Shimge
Power (kW)	2.2
Power (HP)	3
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (m3/h)	10.8
Maximum Delivery Head (m)	118
