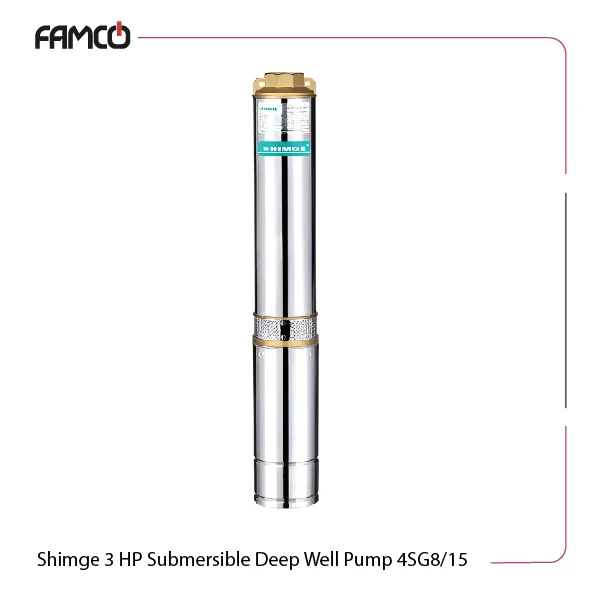

Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Specifications
The pump’s ability to deliver high 10.8 m3/h flow rates and lift water to significant 98-meter heights makes it ideal for industrial, agricultural, and municipal uses. This product features a power of 2.2 kW (3 HP), suitable for various water pumping needs. It operates efficiently in ambient temperatures below 40°C. This series of submersible pumps can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It works within a pH range of 6.5 to 8.5, so it stays compatible with different water qualities. The maximum immersion depth is 70 meters. It supports both single-phase voltage of 220V and three-phase voltage of 380V to provide flexibility for different power supplies. The pump can deliver a maximum flow rate of 180 liters per minute or 10.8 cubic meters per hour. Its maximum delivery head ranges from 29 to 98 meters, allowing it to lift water efficiently over various heights. Overall, this pump is designed for durability and high performance in demanding water transfer tasks, suitable for industrial, agricultural, and municipal applications.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 29-98 |

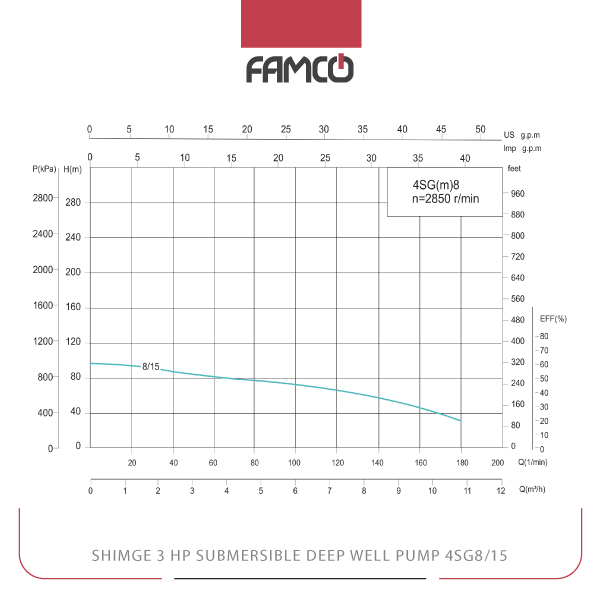

Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 98 | 95 | 88 | 82 | 78 | 73 | 67 | 58 | 45 | 29 |
Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Applications
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
- Deep well water extraction
Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Benefits
- High flow rate and strong lifting capacity
- Flexible voltage options for various power supplies
- Durable construction for long-term use
- Suitable for water with impurities like sand and hydrogen sulfide
Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Price List
| No. | Name | Price |
| 1 | Shimge 3 HP Submersible Deep Well Pump 4SG8/15 Price | Contact us |
