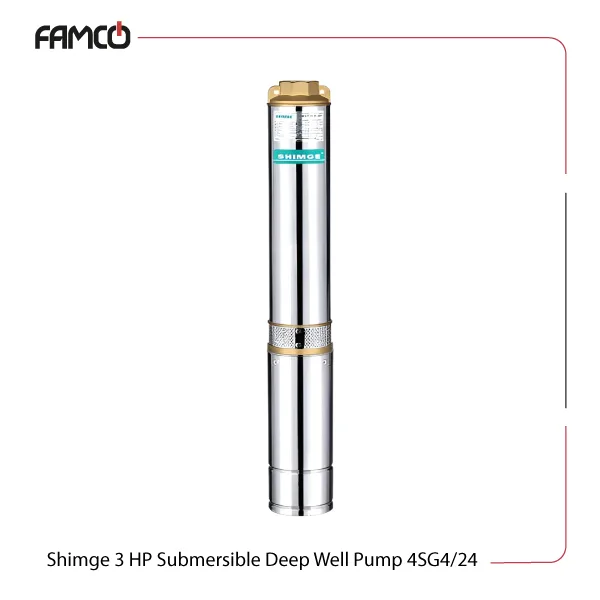

Shimge 3 HP Submersible Deep Well Pump 4SG4/24

2.2 kW (3 HP)

Single-or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 3 HP Submersible Deep Well Pump 4SG4/24

This Shimge pumping solution has a 3 HP output. Suitable for environments with temperatures below 40℃, the 4SG4/24 can operate even in polluted water. However, the amounts shouldn’t exceed 0.01% sand, 1.5mg/L hydrogen sulfide, and 400mg/L chloride content. Its adjustable delivery head from 40 to 178 meters and up to 100 l/min flow rate make it adaptable to different needs. The pump supports multiple voltage options and provides compatibility with power sources. Its deep immersion capability allows for flexible installation for diverse applications. This model is provided in both single- or three-phase versions.

Shimge 3 HP Submersible Deep Well Pump 4SGm4/24 (single-phase)

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 (three-phase)

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Specifications

This product features a power output of 2.2 kW, equivalent to 3 HP. As is expected from powerful submersible pumps, it maintains optimal performance within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters to provide flexible installation options. It supports both single-phase voltage of 220V and three-phase voltage of 380V, and matches both power supply setups. The pump can deliver a maximum flow rate of 100 liters per minute, or 6 cubic meters per hour, with a maximum delivery head ranging from 40 to 178 meters. These specifications have contributed to an all-in-one solution for water transfer, irrigation, and industrial applications.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	100
Max. flow rate (m3/h)	6
Max. delivery head (m)	40-178

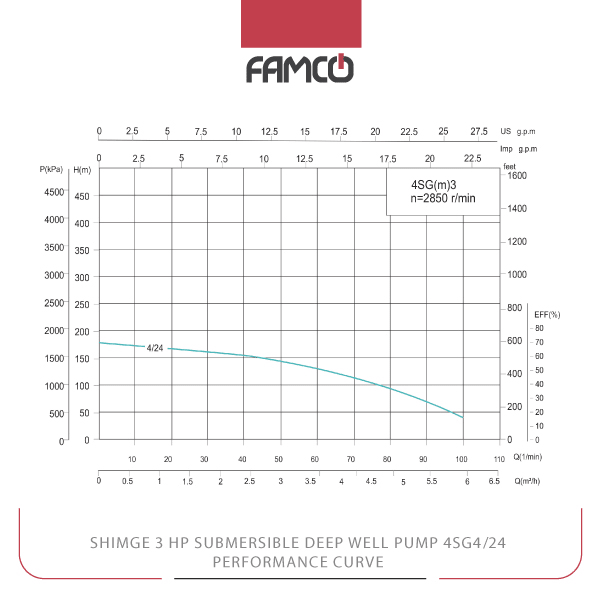

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Performance Data

M3/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6
l/min	0	10	20	30	40	50	60	70	80	90	100
Head (m)	178	171	167	162	155	145	133	115	94	71	40

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Applications

Water transfer in irrigation systems
Industrial fluid pumping
Municipal water supply
Deep well water extraction

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Benefits

High efficiency with 2.2 kW power output
Flexible installation with up to 70 meters immersion depth
Supports various water qualities and compositions
Suitable for different power supplies with single and three-phase options

Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Price List

No.	Name	Price
1	Shimge 3 HP Submersible Deep Well Pump 4SG4/24 Price	Contact us

Brand	Shimge
Power (kW)	2.2
Power (HP)	3
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (L/min)	100
Maximum Delivery Head (m)	178
