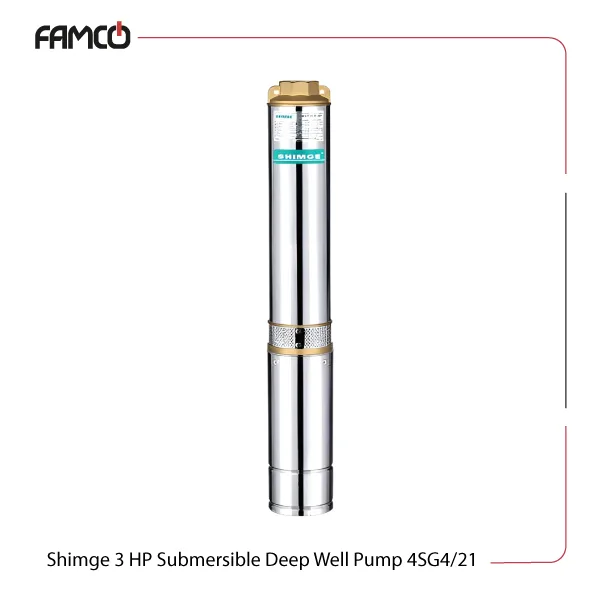

Shimge 3 HP Submersible Deep Well Pump 4SG4/21

2.2 kW (3 HP)

Single-or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 3 HP Submersible Deep Well Pump 4SG4/21

This submersible pump from Shimge operates with a power of 2.2 kW. The working condition includes water with minimal sand and below 1.5 mg/L hydrogen sulfide content. The 4SG4/21 operates at a maximum immersion depth of 70 meters for groundwater extraction from deep boreholes. It supports both single-phase and three-phase power supplies. With a maximum flow rate of 100 liters per minute and a delivery head of up to 156 meters, this pump delivers water over long distances and up to 156 meters high. This pump is perfect for agricultural, irrigation, municipal water supply, and industrial water management. This model is provided in both single- or three-phase versions.

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 (single-phase)

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 (three-phase)

Related Products

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 Specifications

This product features a power output of 2.2 kW (3 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It maintains optimal performance within a pH range of 6.5 to 8.5. This Shimge pump has access to deeper wells, being immersed up to 70 meters deep. It supports both single-phase (220V) and three-phase (380V) power supplies. The maximum flow rate is 100 liters per minute, or 6 cubic meters per hour, with a delivery head ranging from 35 to 156 meters. Designed for installation in 4-inch boreholes, this submersible pump handles groundwater extraction, irrigation, and other water supplies.

Shimge 3 HP Submersible Deep Well Pump 4SG4/21

Specification Value
Power (kW) 2.2
Power (HP) 3
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 35-156

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 156 150 146 142 136 127 116 101 84 62 35

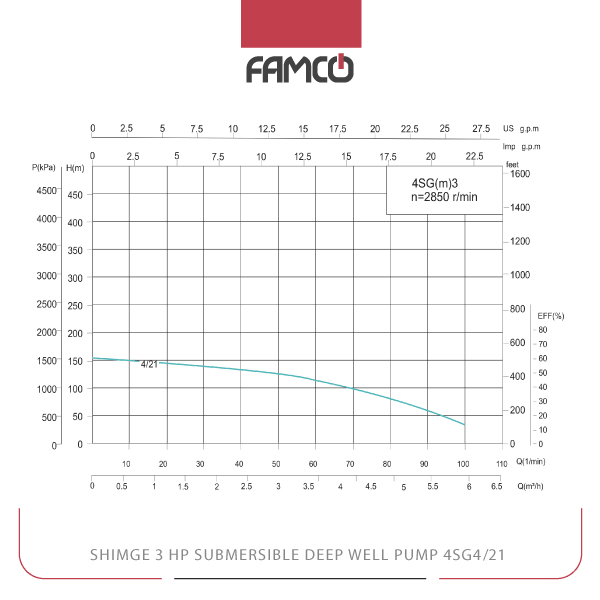

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 Performance Curve

Shimge 3 HP Submersible Deep Well Pump 4SG4/21 Applications

  • Groundwater extraction from deep boreholes
  • Irrigation systems for agriculture
  • Municipal water supply projects
  • Industrial water management and processing



Shimge 3 HP Submersible Deep Well Pump 4SG4/21 Benefits

  • High efficiency with a powerful 2.2 kW motor
  • Suitable for deep well applications up to 70 meters
  • Flexible power options with single and three-phase support
  • Durable design for challenging water conditions
