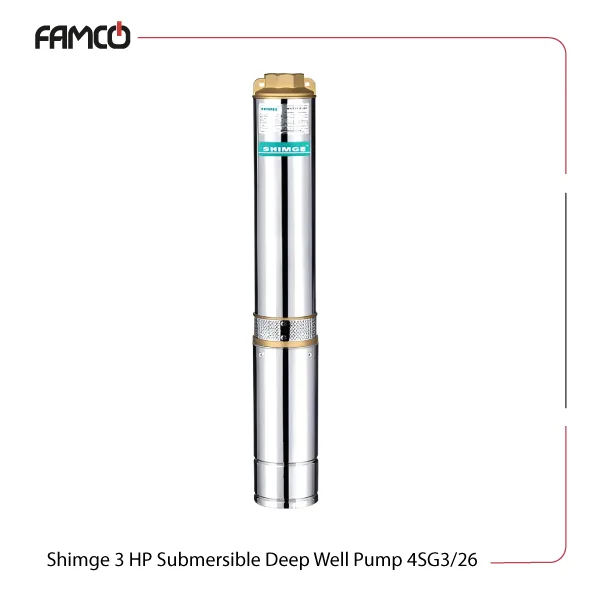

Overview of Shimge 3 HP Submersible Deep Well Pump 4SG3/26

This product is an all-purpose water pump designed for diverse applications. With a 2.2 kW motor, it offers high efficiency and performance. It is suitable for environments with specific water qualities, including low sand and hydrogen sulfide content. Its ability to operate at depths up to 70 meters makes it ideal for deep well pumping, irrigation, and industrial water supply. The pump supports both single-phase and three-phase power, making it versatile for different power sources. Its flow rate and head range ensure it can handle various pressure and volume requirements, making it a popular choice for residential, commercial, and industrial uses. The device’s robust construction and adaptable features ensure lasting operation even in challenging conditions.

Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Specifications

This product features a power output of 2.2 kW (3 HP). It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, to increase overall compatibility with different water qualities. The maximum immersion depth is 70 meters. It supports both single-phase (220V) and three-phase (380V) power supplies, which renders this submersible pump applicable to different setups. The pump can deliver a maximum flow rate of 80 liters per minute, equivalent to 4.8 cubic meters per hour, with a maximum delivery head ranging from 65 to 195 meters, suitable for high-pressure needs in various systems.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	80
Max. flow rate (m3/h)	4.8
Max. delivery head (m)	65-195

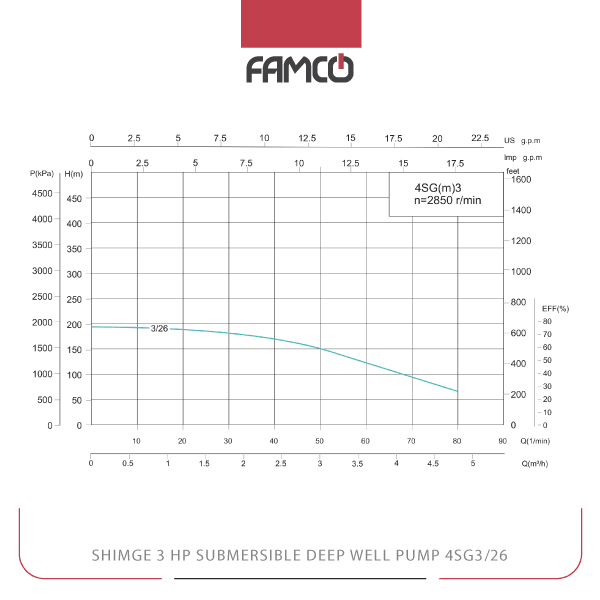

Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Performance Data

M3/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
Head (m)	195	193	190	182	168	150	124	96	65

Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Applications

Deep well water extraction
Irrigation systems in agriculture
Industrial water supply
Municipal water treatment

Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Benefits

High efficiency with 2.2 kW power output
Suitable for deep water applications up to 70 meters
Flexible power options with single and three-phase support
Handles water with specific quality parameters, including low sand and sulfide levels

Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Price List

No.	Name	Price
1	Shimge 3 HP Submersible Deep Well Pump 4SG3/26 Price	Contact us

Brand	Shimge
Power (kW)	2.2
Power (HP)	3
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (m3/h)	4.8
Maximum Delivery Head (m)	195
