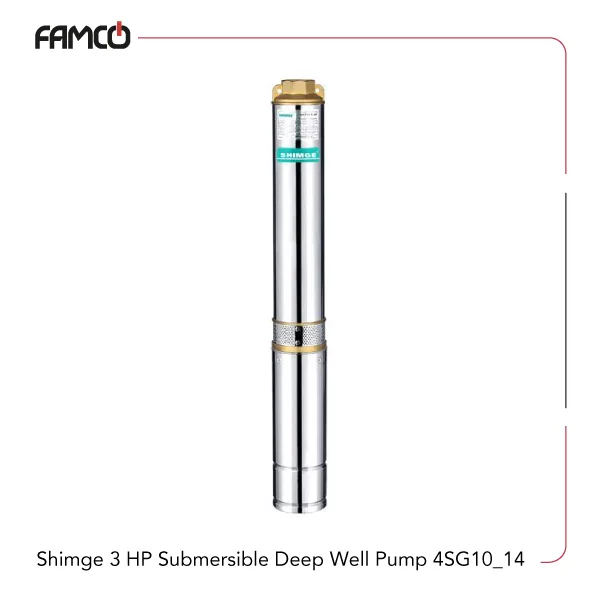

Shimge 3 HP Submersible Deep Well Pump 4SG10/14 Specifications
Shimge 3 HP submersible deep well pump 4SG10/14 operates at a frequency of 50 or 60 Hz and supports both single-phase and three-phase power supplies. It delivers a power output of 2.2 kW, equivalent to 3 HP. The rated current is 18 amperes for single-phase setups and 8.5 amperes for three-phase systems. It can generate a maximum head of 90 meters, which is appropriate for lifting water over significant heights. The maximum flow rate reaches 12.6 cubic meters per hour or 210 liters per minute,. This Shimge submersible pump is designed to work in environments with ambient temperatures below 40°C. It can handle water with minimal sand content, up to 0.01% by mass, and can tolerate water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, making it suitable for various water qualities. Its robust construction and versatile specifications make it a reliable choice for water supply, irrigation, and industrial applications where water quality and flow are critical.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Single- and Three-phase |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Rated Current (A) | 18 (Single-phase)/ 8.5(three-phase) |
| Maximum Head (m) | 90 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Maximum Ambient Temperature (°C) | < 40 |
| Sand Content (mass fraction) | up to 0.01% |
| Hydrogen Sulfide Content | up to 1.5 mg/L |
| Chloride Ion Content | up to 400 mg/L |
| pH Range | 6.5 to 8.5 |
Shimge 3 HP Submersible Deep Well Pump 4SG10/14 Applications
- Irrigation systems for agriculture
- Water supply for residential and commercial buildings
- Industrial water transfer and processing
- Flood control and drainage projects
Shimge 3 HP Submersible Deep Well Pump 4SG10/14 Benefits
- Supports both single-phase and three-phase power sources for flexibility
- High maximum head and flow rate for demanding applications
- Can operate in environments with specific water quality parameters
- Durable design suitable for various industrial and residential uses
Shimge 3 HP Submersible Deep Well Pump 4SG10/14 Price List
| No. | Name | Price |
| 1 | Shimge 3 HP Submersible Deep Well Pump 4SG10/14 Price | Contact us |
